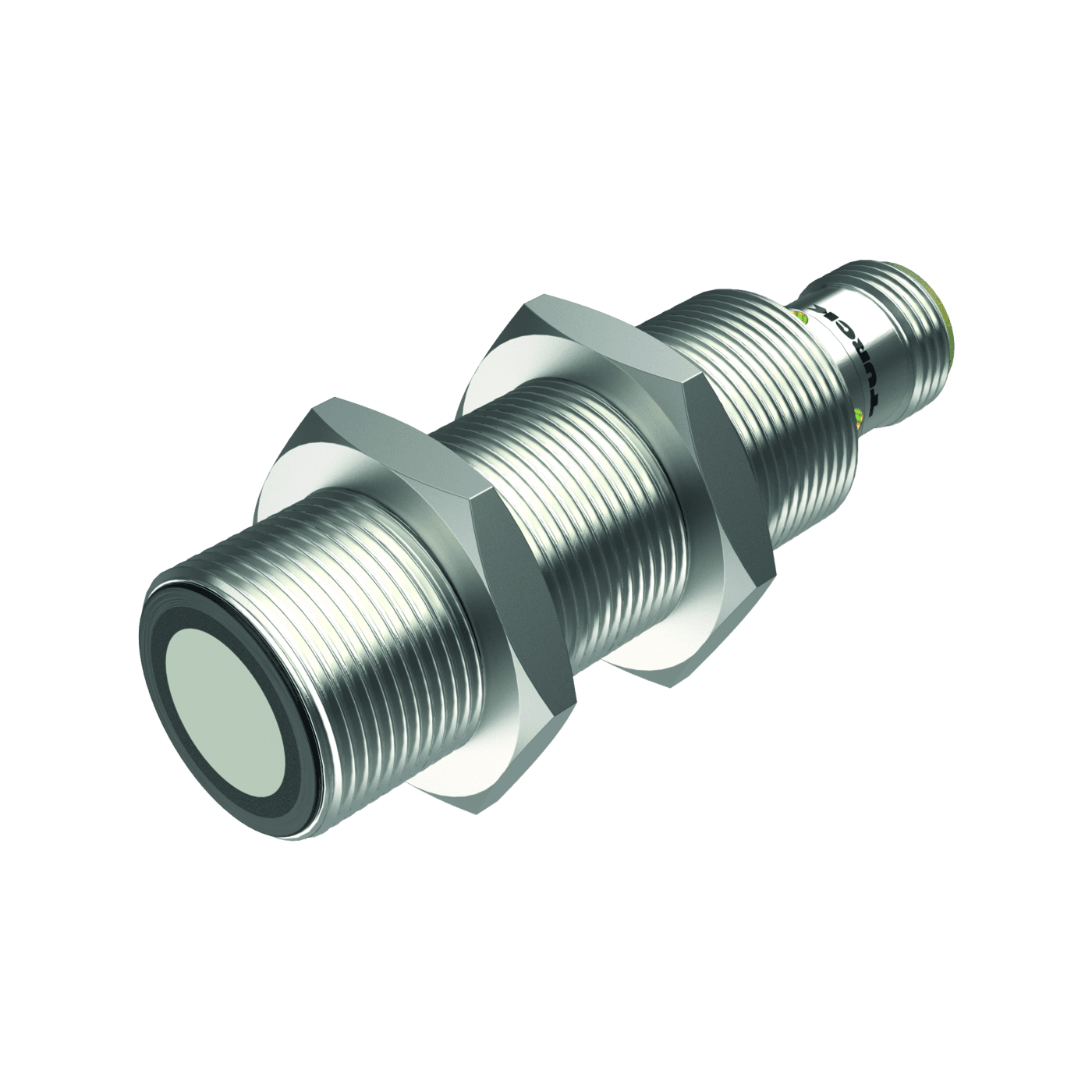

Ultrasonic Sensor
RU100U-M18M-UP8X2-H1151
Order ID no. 1610010
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
Compact
EAN/UPC code
4047101287301
Detection type
contactless
Gross weight
72
Height
20
Length
100
Net weight
72
Dimension unit
MMT
Weight unit
GRM
Volume
200
Volume unit
CMQ
Width
100
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 18 mm

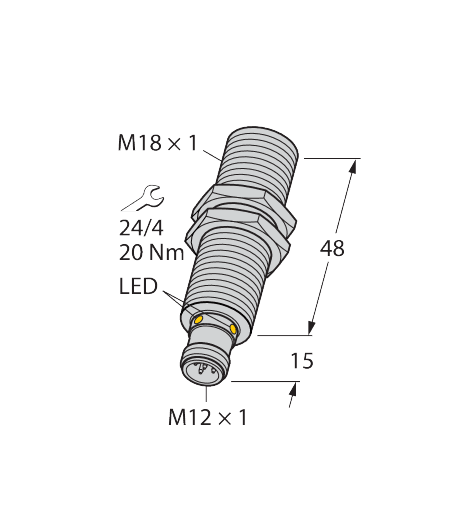

Dimensions
63 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Medium
liquids, Bulk goods
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP
Measuring principle
Ultrasonic
Protection class
IP67
Quality active face
Epoxy
Max. range (mm)
1000
Resolution
1 cm
Setting option
Remote Teach
Switching element function
NO/NC
Radiation direction
straight
home
Turck-Shop
Sensors
Ultrasonic Sensors
RU100U-M18M-UP8X2-H1151
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
1000
