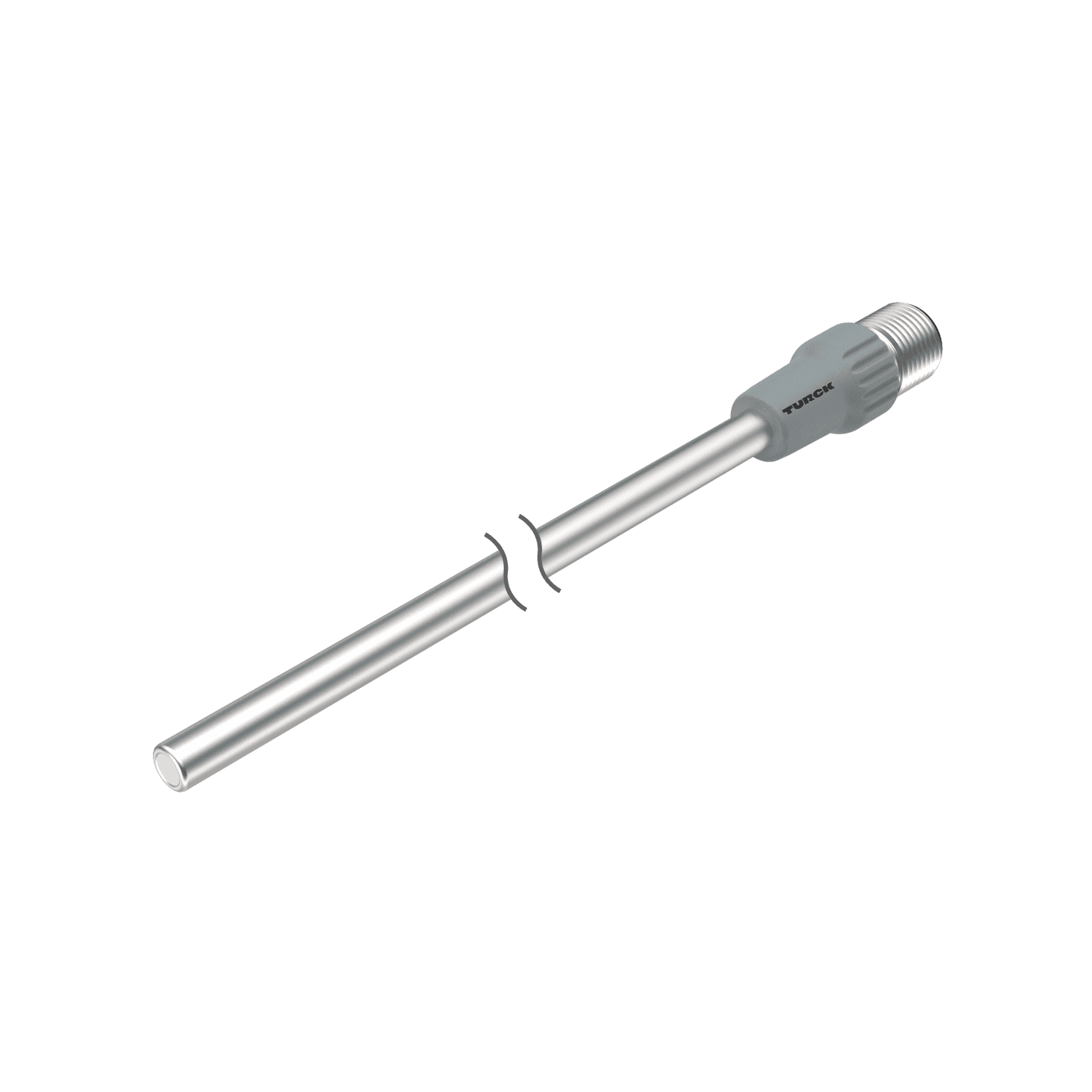

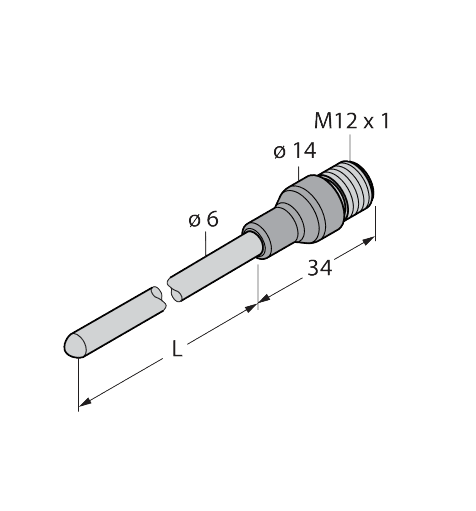

Temperature detection Probe
TP-206KK1-CF-H1141-L500
Order ID no. 100017082
In Stock
Price Group
D2
List Price
USD 72.07
home
Turck-Shop
Sensors
Temperature Sensors
TP-206KK1-CF-H1141-L500
Technical Data
Downloads
Accessory type
Extension Cable
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Connector type
M12 x 1
Design
Temperature probe
Detection type
medium contact
Electrical output
Voltage
Electrical connection
Connector
Housing material
Metal/plastic
Housing quality
Inconel 600/Nylon
Immersion depth L (mm)
500
Measuring range
-40...1100 °C
Mounting conditions
Immersion sensor
Output function
2-wire
Process connection
For compression fittings, thermowell or direct mounting
Protection class
IP67
Key Features
Electrical output
Voltage
Process connection
For compression fittings, thermowell or direct mounting
