PT1000PSIG-2014-I2-H1143/X | TURCK - Your Global Automation Partner

Pressure Transmitter

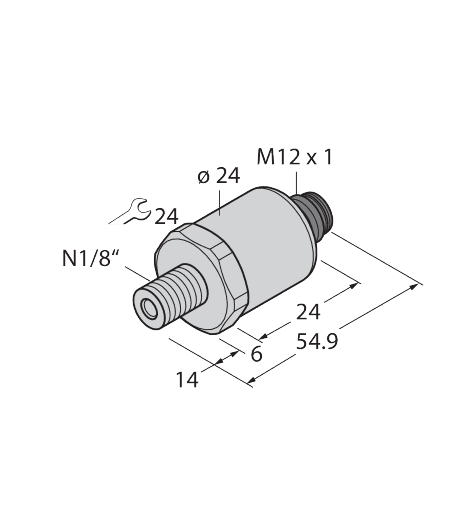

PT1000PSIG-2014-I2-H1143/X

Order ID no. 6837241

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101428124
Electrical output: Current output (2-wire)
Gross weight: 90
Height: 0
Length: 0
Net weight: 90
Dimension unit: MMT
Weight unit: GRM
Volume: 0
Width: 0
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Electrical connection: Connector
Connector type: M12 x 1
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4016 (AISI 430)
Process connection: 1/8”-27 NPT male thread
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Pressure range: 0...68,95 bar
Operating voltage: DC
Output function: Analog output current
Pressure type: Relative pressure
Protection class: IP67

Key Features

Electrical output: Current output (2-wire)
Process connection: 1/8”-27 NPT male thread

In Stock
Price Group	J1
List Price	$153.99
