Pressure Transmitter

PT400R-2004-I2-WM0.5

Order ID no. 100000876

Base unit: PCE
EAN/UPC code: 4047101444858
Electrical output: Current output (2-wire)
Gross weight: 103
Height: 40
Length: 100
Net weight: 103
Dimension unit: MMT
Weight unit: GRM
Volume: 260
Volume unit: CMQ
Width: 65
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Electrical connection: Stranded wires
Connector type: Open end
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)

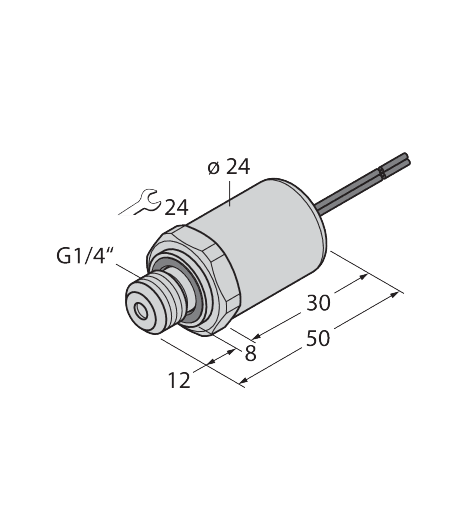

Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Pressure range: 0...400 bar
Operating voltage: DC
Output function: Analog output current
Pressure type: Relative pressure
Protection class: IP65
