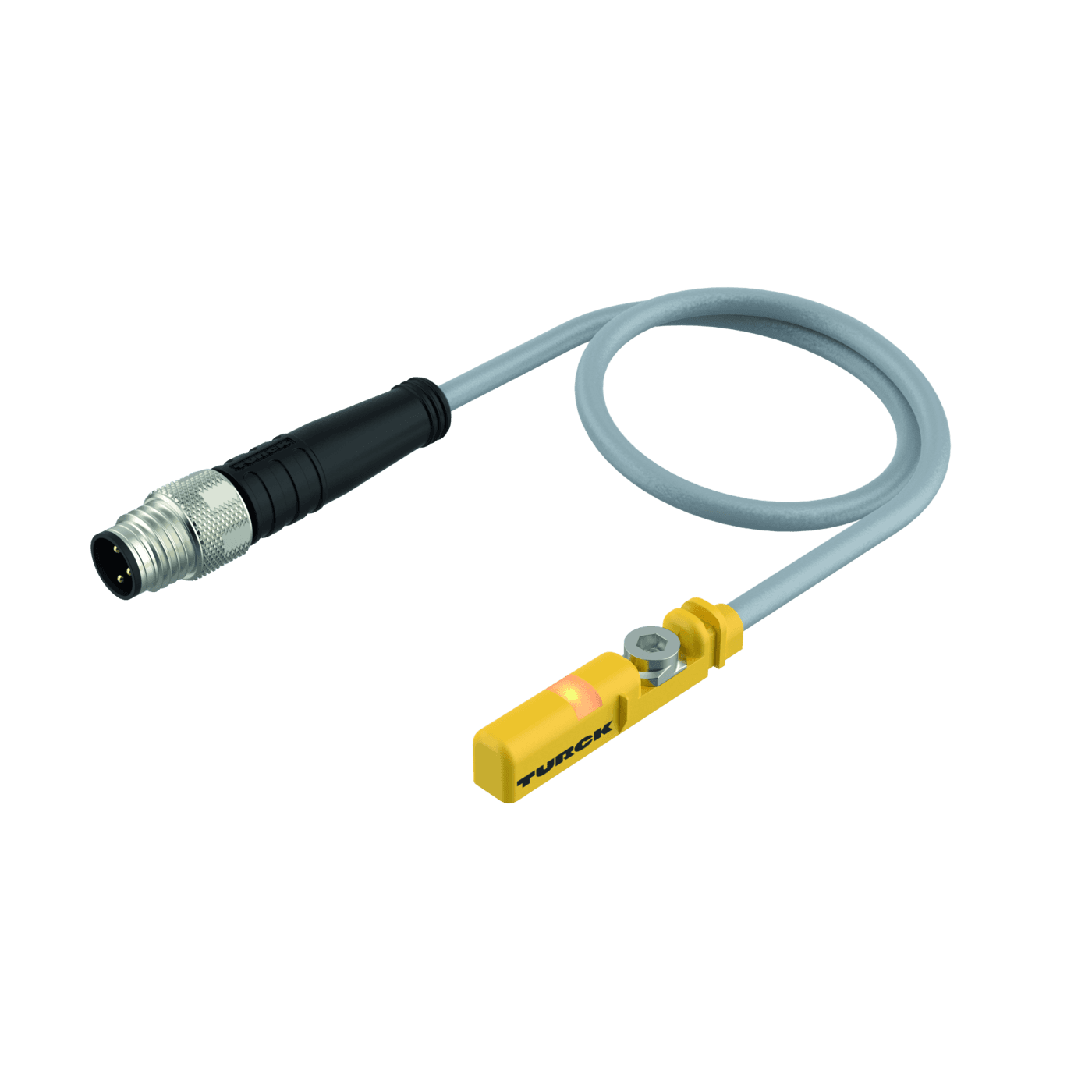

Magnetic Field Sensor

BIM-UNT-AN6X-0.3-PSG3M

Order ID no. 4685706

Base unit: PCE
EAN/UPC code: 4047101195323
Gross weight: 16
Height: 10
Length: 100
Net weight: 16
Dimension unit: MMT
Weight unit: GRM
Volume: 100
Volume unit: CMQ
Width: 100
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.3
Electrical connection: Cable with connector
Connector type: M8 x 1
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Dimensions: 28 mm x 5 mm x 6 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: NPN
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 1

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: NPN
