Magnetic Field Sensor

BIM-NST-Y1X

Order ID no. 1058400

Base unit: PCE
EAN/UPC code: 4047101064223
Gross weight: 70
Height: 20
Length: 170
Net weight: 70
Dimension unit: MMT
Weight unit: GRM
Volume: 340
Volume unit: CMQ
Width: 100
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Blue
Cable length (m): 2
Electrical connection: Cable
Design: Rectangular
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder

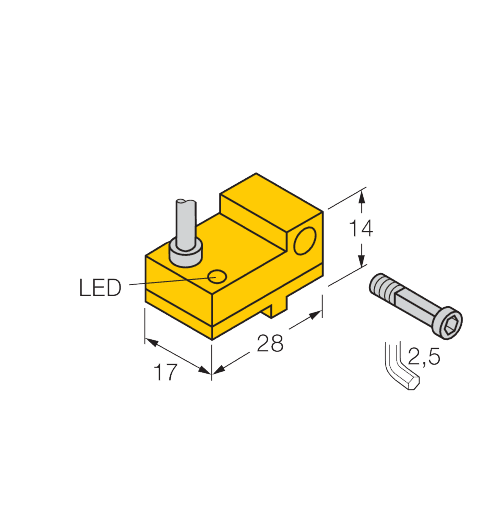

Dimensions: 28 mm x 17 mm x 14 mm
Housing material: Plastic
Housing quality: PA12-GF30
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Switching frequency (kHz): 1
