BIM-UNC-AP6X-0.3-RS4 | TURCK - Your Global Automation Partner
Magnetic Field Sensor
BIM-UNC-AP6X-0.3-RS4
Order ID no. 100001906
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable color
Gray
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Cylindrical design
C-groove cylinder

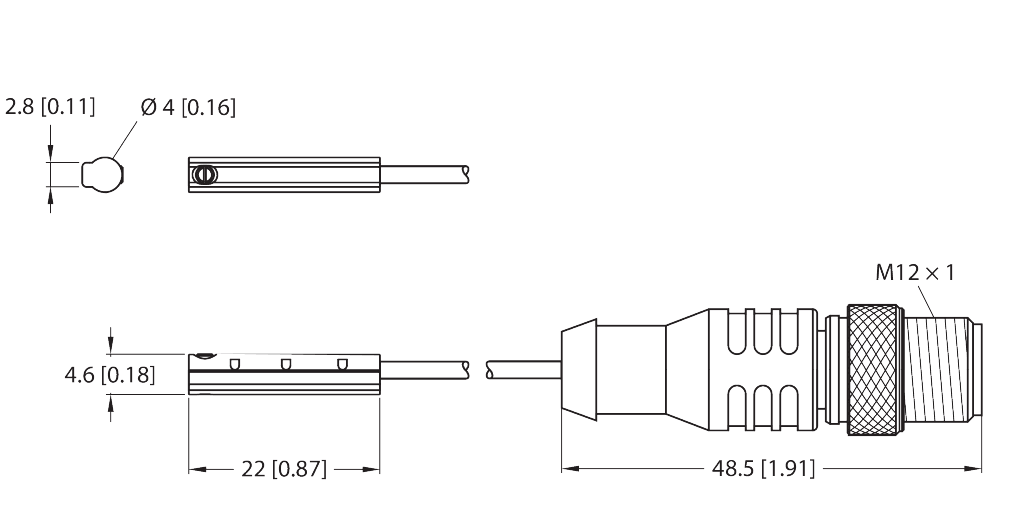

Dimensions
22 mm x 4 mm x 4,6 mm
Housing material
Plastic
Housing quality
PP-GF20
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP-GF20
Switching element function
NO contact
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Cable with connector
Cylindrical design
C-groove cylinder
Output function
PNP
