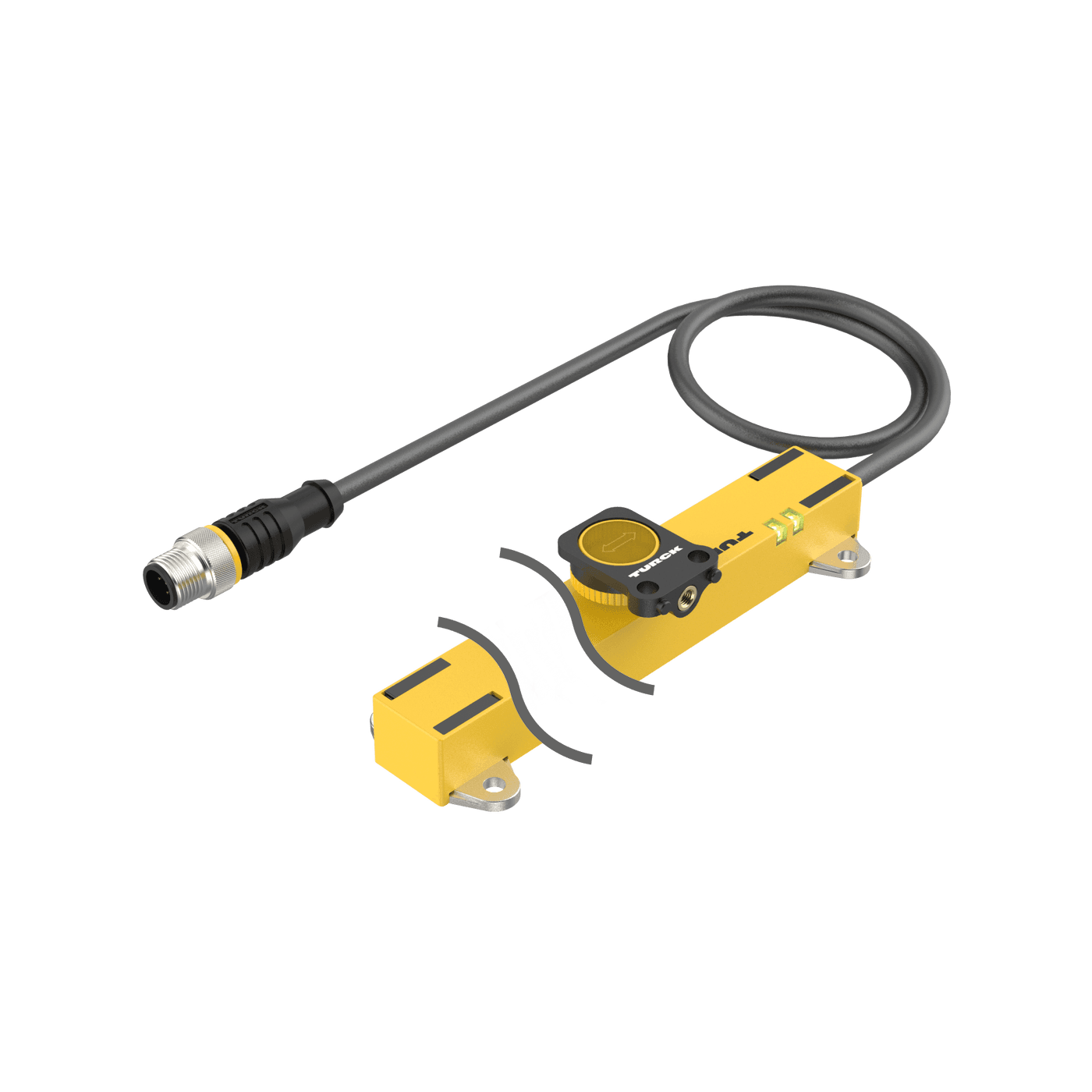

Inductive Linear Position Sensor
LI300P1-Q17LM1-LIU5X2-0.3-RS5
Order ID no. 1590756
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101273830
Gross weight
218
Height
50
Length
330
Net weight
218
Dimension unit
MMT
Weight unit
GRM
Volume
2640
Volume unit
CMQ
Width
160
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable color
Black
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Profile

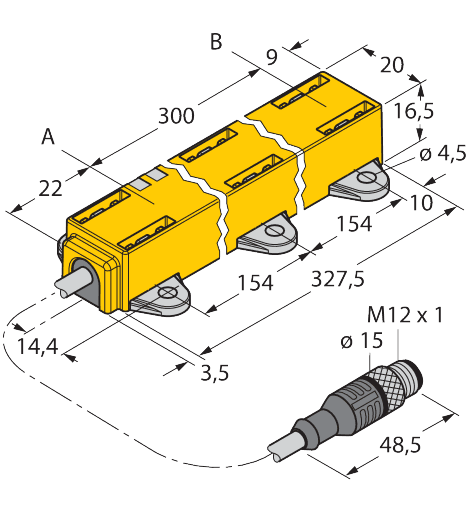

Dimensions
331 mm x 20 mm x 16,5 mm
Housing material
Plastic
Housing quality
PC-GF10
Measuring range (mm)
300
Operating voltage
DC
Output function
Analog output
Measuring principle
Inductive
Protection class
IP67
Resolution
0.073 mm
Key Features
Electrical connection
Cable with connector
Measuring range (mm)
300
home
Turck-Shop
Sensors
Linear Position Sensors
LI300P1-Q17LM1-LIU5X2-0.3-RS5
Output function
Analog output
In Stock
Price Group
F1
List Price
$507.34
Item Total
$507.34
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
