Inductive Sensor Ring sensor
BI65R-Q80-AP6X2-H1141
Order ID no. 1407531
In Stock
Price Group
E1
List Price
USD 651.20
home
Turck-Shop
Sensors
Inductive Sensors
BI65R-Q80-AP6X2-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
M12 x 1
Design
Ring sensor

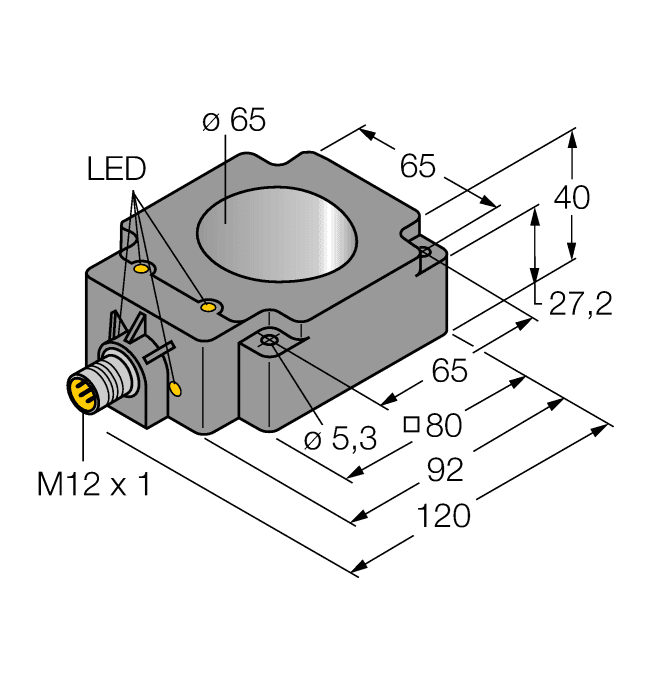

Dimensions
92 mm x 80 mm x 40 mm
Electrical connection
Connector
Housing material
Plastic
Housing quality
PBT-GF30-V0
Inside ring diameter D (mm)
65
Operating voltage
DC
Output function
PNP
Protection class
IP67
Special features
Ring sensor, static output
Switching element function
NO contact
Switching frequency (kHz)
0.01
Key Features
Electrical connection
Connector
Output function
PNP
