FCS-N1/2A4-AP8X-H1141 | TURCK - Your Global Automation Partner
Flow Monitoring

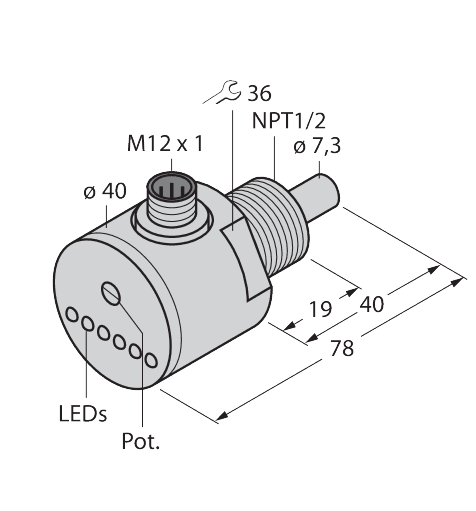

FCS-N1/2A4-AP8X-H1141
Order ID no. 6871004
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101175349
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
303
Height
50
Length
110
Net weight
303
Dimension unit
MMT
Weight unit
GRM
Volume
605
Volume unit
CMQ
Width
110
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-20
Application area
Standard
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
1/2″ NPT
Medium
liquids
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
PNP
Protection class
IP67
Switching element function
NO contact
Key Features
Process connection
1/2″ NPT
Output function
PNP
In Stock
Price Group
D2
List Price
$731.61
