FCMI-3/4D12DYA4P-LIUP8X-H1141 | TURCK - Your Global Automation Partner
Flow Rate Measurement

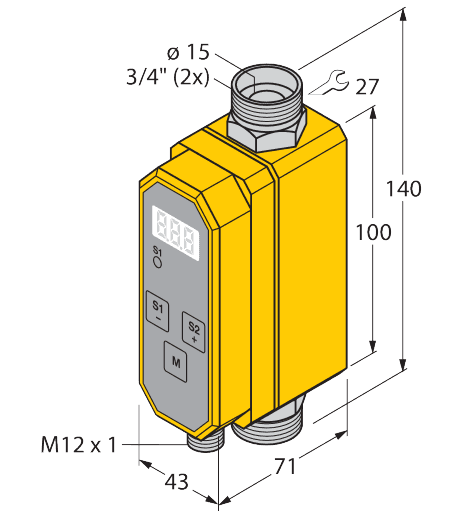

FCMI-3/4D12DYA4P-LIUP8X-H1141
Order ID no. 6870817
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101046540
Function
Flow rate measurement
Detection type
Magnetic-inductive
Gross weight
655
Height
60
Length
190
Net weight
655
Dimension unit
MMT
Weight unit
GRM
Volume
1368
Volume unit
CMQ
Width
120
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
0
Application area
Standard
Electrical connection
Connector
Connector type
M12 x 1
Design
Inline
Housing material
Plastic
Housing quality
PBT
Process connection
3/4″ Swagelok
Medium
liquids
Media temperature max. (°C)
60
Media temperature min. (°C)
5
Mounting conditions
Inline sensor
Operating voltage
DC
Output function
PNP/Analog output
Protection class
IP65
Switching element function
NO/NC programmable
Key Features
Process connection
3/4″ Swagelok
Output function
PNP/Analog output
In Stock
Price Group
C1
List Price
$1,412.31
