Flow Monitoring

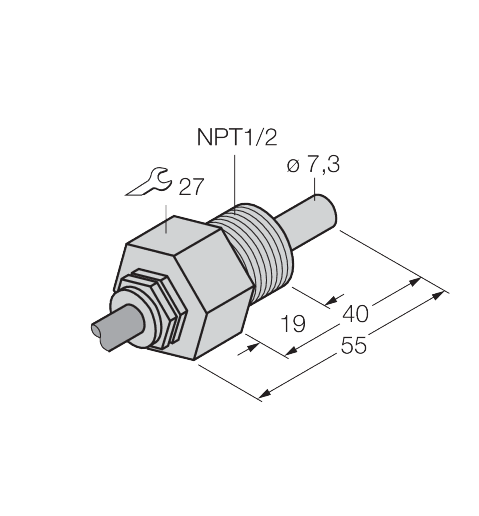

FCS-N1/2A4-NAEX0
Order ID no. 6870471
In Stock
Price Group
D2
List Price
$725.51
Item Total
$725.51
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-N1/2A4-NAEX0
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101174236
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
269
Height
50
Length
110
Net weight
269
Dimension unit
MMT
Weight unit
GRM
Volume
605
Volume unit
CMQ
Width
110
Application area
Explosion hazard (zone 0)
Approvals
ATEX, CE, UKCA, GOST
Cable color
Blue
Cable length (m)
2
Electrical connection
Cable
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
1/2″ NPT
Medium
liquids
Media temperature max. (°C)
60
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
1/2″ NPT
