Flow Monitoring

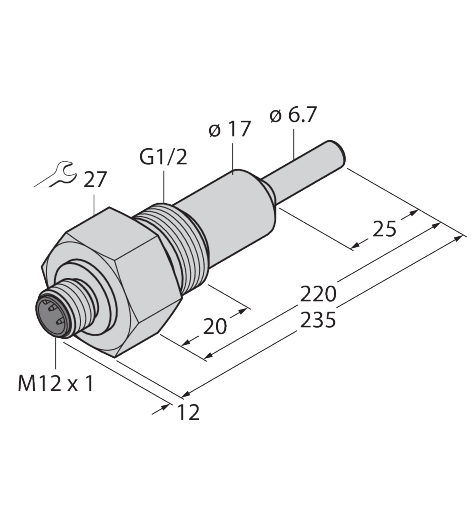

FCS-G1/2A4-NAEX-H1141/AL220
Order ID no. 6870387
In Stock
Price Group
D2
List Price
$1,654.95
Item Total
$1,654.95
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-G1/2A4-NAEX-H1141/AL220
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101208665
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
443
Height
60
Length
240
Net weight
443
Dimension unit
MMT
Weight unit
GRM
Volume
2736
Volume unit
CMQ
Width
190
Application area
Explosion hazard (zone 1)
Approvals
ATEX, CE, UKCA, GOST
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
G 1/2''
Medium
gases
Media temperature max. (°C)
85
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
G 1/2''
