FCS-G1/2HC22-NAEX/D100 5M | TURCK - Your Global Automation Partner
Flow Monitoring

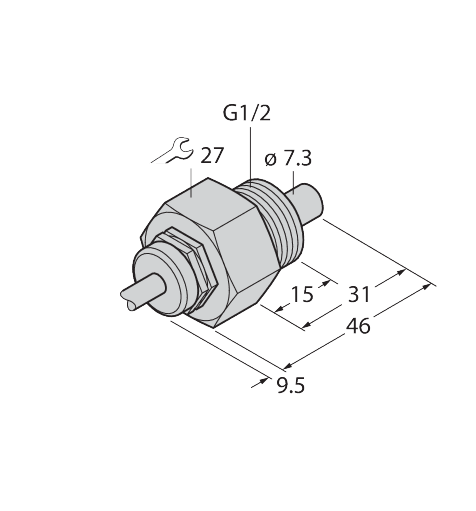

FCS-G1/2HC22-NAEX/D100 5M
Order ID no. 6870368
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101173321
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
376
Height
60
Length
190
Net weight
376
Dimension unit
MMT
Weight unit
GRM
Volume
1368
Volume unit
CMQ
Width
120
Ambient temperature max. (°C)
120
Ambient temperature min. (°C)
10
Application area
High temperature
Approvals
ATEX, CE, UKCA, GOST
Cable color
Blue
Cable length (m)
5
Electrical connection
Cable
Design
Immersion
Housing material
Metal
Housing quality
Hastelloy C22 (2.4602)
Process connection
G 1/2''
Medium
liquids
Media temperature max. (°C)
120
Media temperature min. (°C)
10
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
G 1/2''
In Stock
Price Group
D2
List Price
$2,388.94
