FCS-G1/2A4P-AP8X-H1141/L080 | TURCK - Your Global Automation Partner
Flow Monitoring

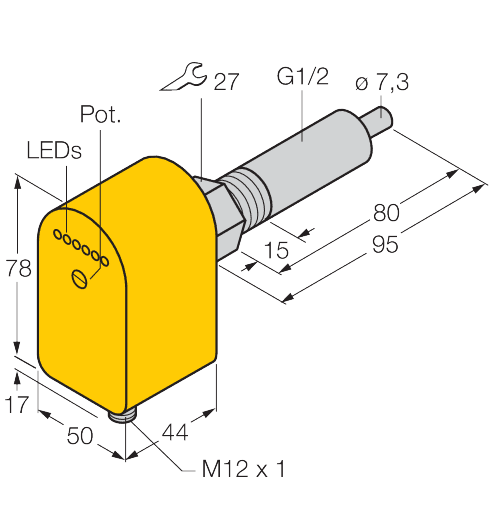

FCS-G1/2A4P-AP8X-H1141/L080
Order ID no. 6870364
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101173284
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
548
Height
60
Length
170
Net weight
548
Dimension unit
MMT
Weight unit
GRM
Volume
1020
Volume unit
CMQ
Width
100
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Application area
Standard
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Plastic
Housing quality
PBT
Process connection
G 1/2''
Medium
liquids
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
PNP
Protection class
IP67
Switching element function
NO contact
Key Features
Process connection
G 1/2''
Output function
PNP
In Stock
Price Group
D2
List Price
$688.87
