Flow Monitoring

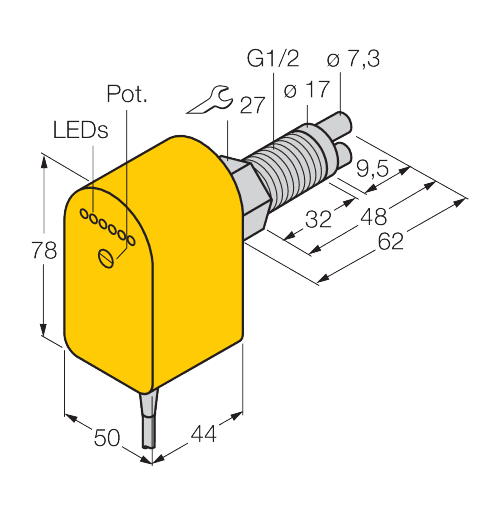

FCS-GL1/2A2P-VRX/24VDC/A
Order ID no. 6870363
In Stock
Price Group
D2
List Price
$791.34
Item Total
$791.34
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-GL1/2A2P-VRX/24VDC/A
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101173277
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
613
Height
60
Length
130
Net weight
613
Dimension unit
MMT
Weight unit
GRM
Volume
1014
Volume unit
CMQ
Width
130
Application area
Standard
Cable length (m)
2
Electrical connection
Cable
Design
Immersion
Housing material
Plastic
Housing quality
PBT
Process connection
G 1/2” long version
Medium
gases
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
Relay output
Protection class
IP68
Switching element function
Complementary contact
Key Features
Process connection
G 1/2” long version
Output function
Relay output
