FCS-G1/4A4-NAEX-H1141 | TURCK - Your Global Automation Partner
Flow Monitoring

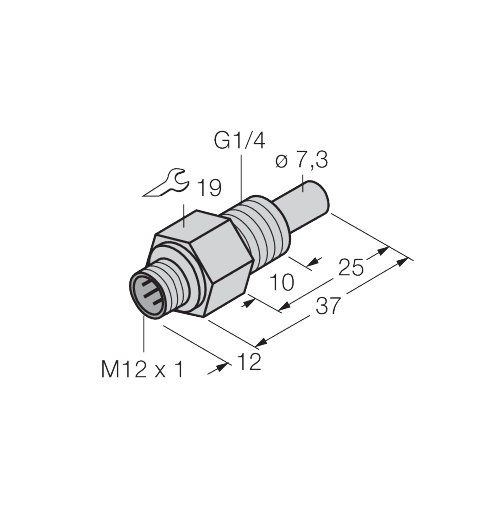

FCS-G1/4A4-NAEX-H1141
Order ID no. 6870341
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101173055
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
96
Height
150
Length
130
Net weight
96
Dimension unit
MMT
Weight unit
GRM
Volume
1170
Volume unit
CMQ
Width
60
Application area
Explosion hazard (zone 1)
Approvals
ATEX, CE, UKCA, GOST
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
G 1/4''
Medium
liquids
Media temperature max. (°C)
85
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
G 1/4''
In Stock
Price Group
D2
List Price
$677.75
