FCS-G1/2A4-NAEX0/L065/D024 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Flow Monitoring

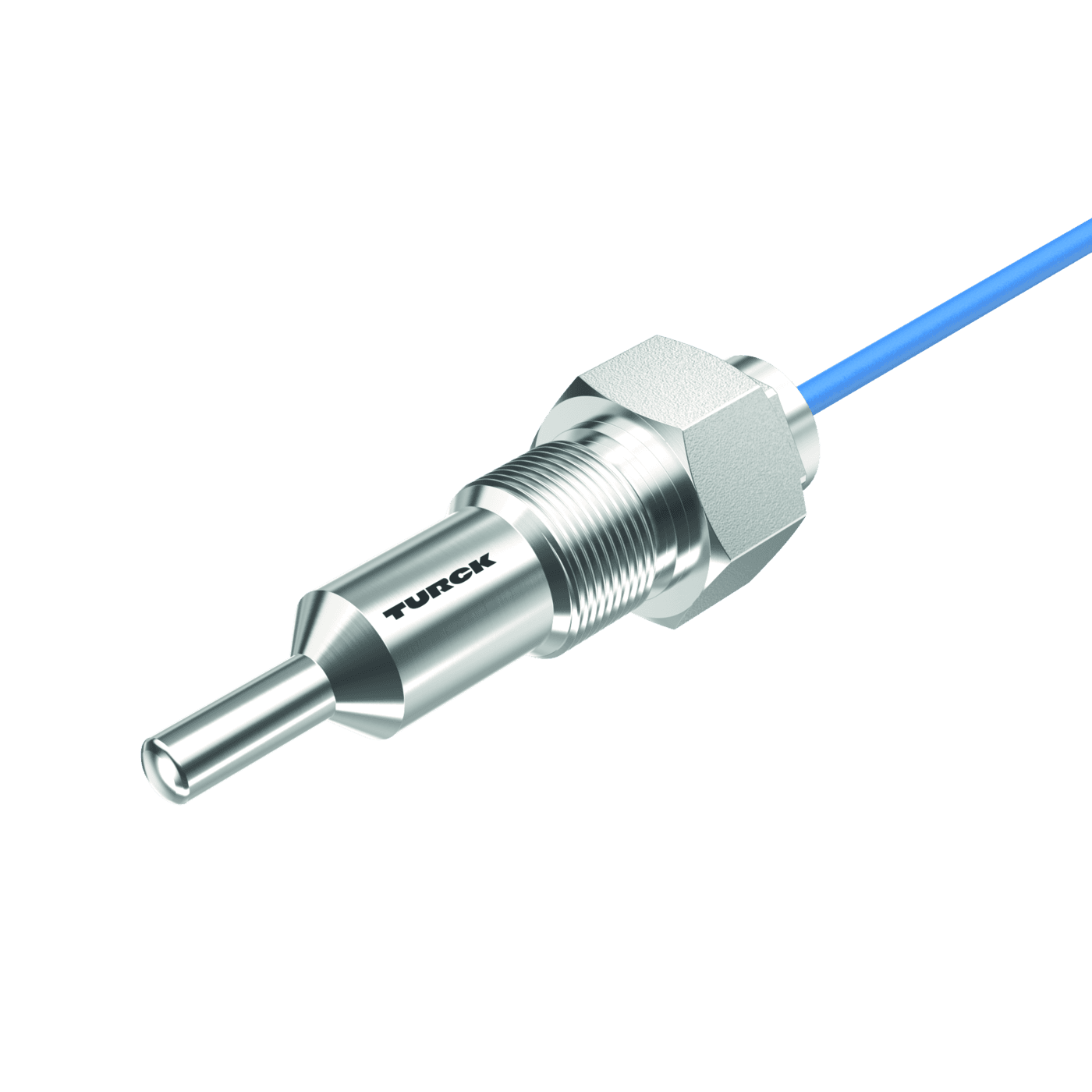

FCS-G1/2A4-NAEX0/L065/D024
Order ID no. 6870339
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101173031
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
312
Height
50
Length
110
Net weight
312
Dimension unit
MMT
Weight unit
GRM
Volume
605
Volume unit
CMQ
Width
110
Application area
Explosion hazard (zone 0)
Approvals
ATEX, CE, UKCA, GOST
Cable color
Blue
Cable length (m)
2
Electrical connection
Cable
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
G 1/2''
Medium
liquids
Media temperature max. (°C)
60
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-G1/2A4-NAEX0/L065/D024
Process connection
G 1/2''
In Stock
Price Group
D2
List Price
$1,376.81
Item Total
$1,376.81
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
