FCS-G1/2A4-NAEX-SK/L160 | TURCK - Your Global Automation Partner
Flow Monitoring

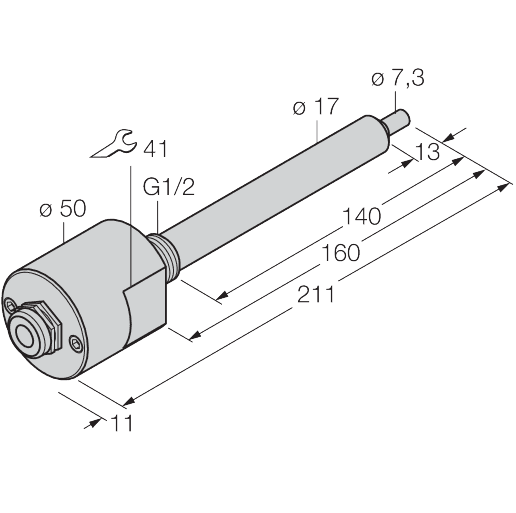

FCS-G1/2A4-NAEX-SK/L160
Order ID no. 6870327
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101172911
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
851
Height
130
Length
230
Net weight
851
Dimension unit
MMT
Weight unit
GRM
Volume
3588
Volume unit
CMQ
Width
120
Application area
Explosion hazard (zone 1)
Approvals
ATEX, CE, UKCA, GOST
Electrical connection
Terminal chamber
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
G 1/2''
Medium
liquids
Media temperature max. (°C)
85
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
G 1/2''
In Stock
Price Group
D2
List Price
$1,225.38
