FCS-G1/2A4-NAEX/AL065 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Flow Monitoring

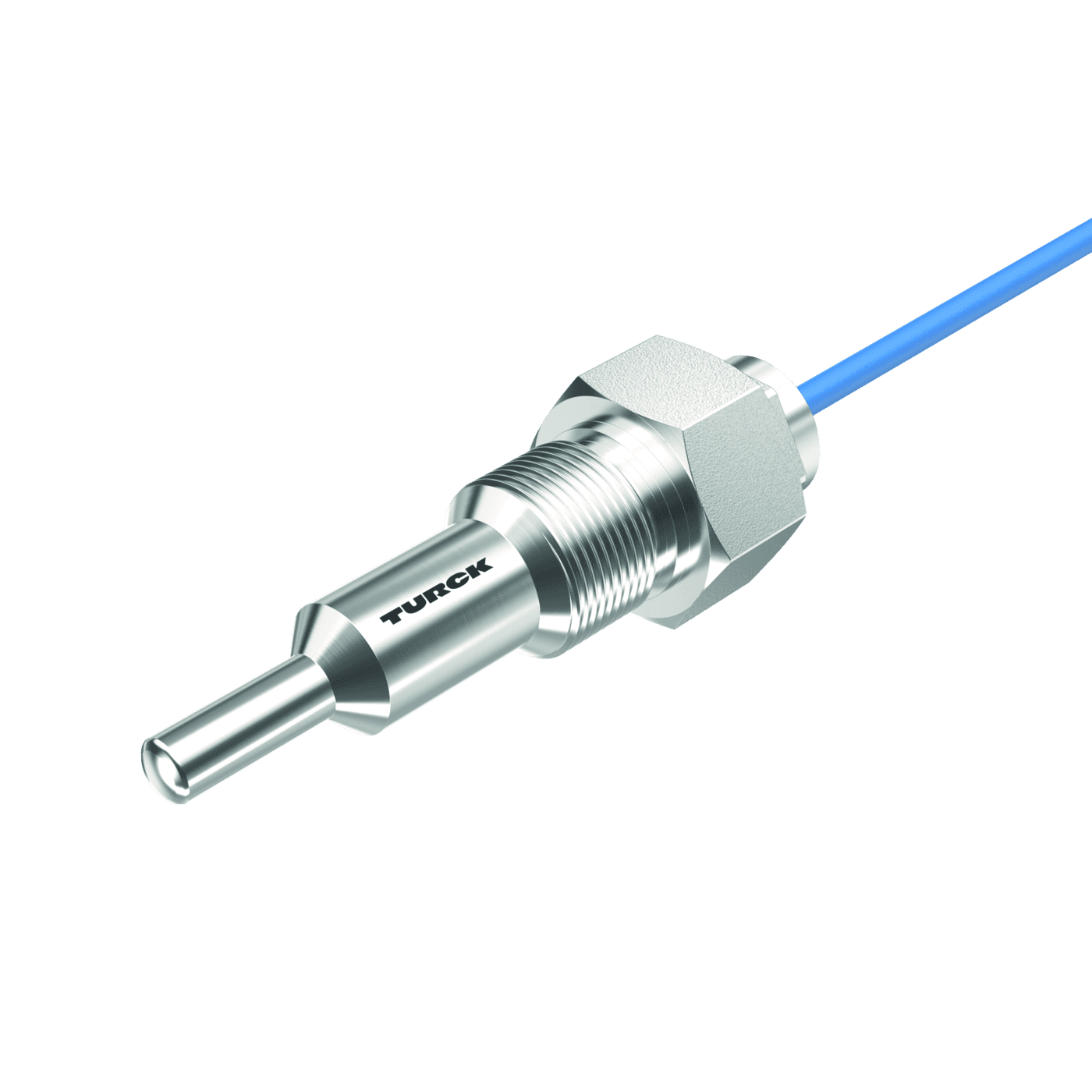

FCS-G1/2A4-NAEX/AL065
Order ID no. 6870324
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101172881
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
300
Height
50
Length
110
Net weight
300
Dimension unit
MMT
Weight unit
GRM
Volume
550
Volume unit
CMQ
Width
100
Application area
Explosion hazard (zone 1)
Approvals
ATEX, CE, UKCA, GOST
Cable color
Blue
Cable length (m)
2
Electrical connection
Cable
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Process connection
G 1/2''
Medium
gases
Media temperature max. (°C)
85
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Protection class
IP67
Key Features
Process connection
G 1/2''
In Stock
Price Group
D2
List Price
$868.23
