FTCST-A4P-2AP8X-H1140 | TURCK - Your Global Automation Partner
Freely Rotatable FTCST Flow Sensor

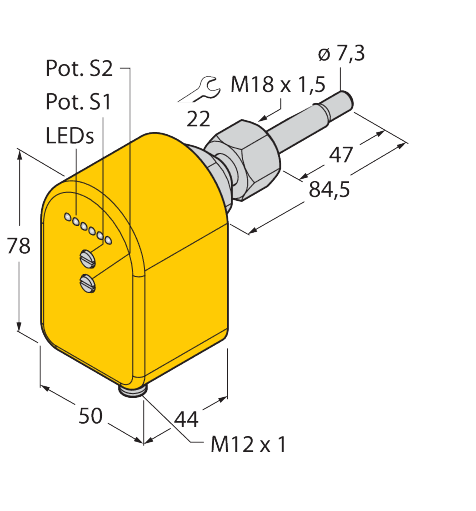

FTCST-A4P-2AP8X-H1140
Order ID no. 6870280
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101303131
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
507
Height
60
Length
190
Net weight
507
Dimension unit
MMT
Weight unit
GRM
Volume
1368
Volume unit
CMQ
Width
120
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Application area
Standard
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Plastic
Housing quality
PBT
Process connection
M18 × 1.5 female thread
Medium
liquids
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
2 x PNP
Protection class
IP65
Switching element function
2 x NO contact
Key Features
Process connection
M18 × 1.5 female thread
Output function
2 x PNP
In Stock
Price Group
D2
List Price
$553.68
