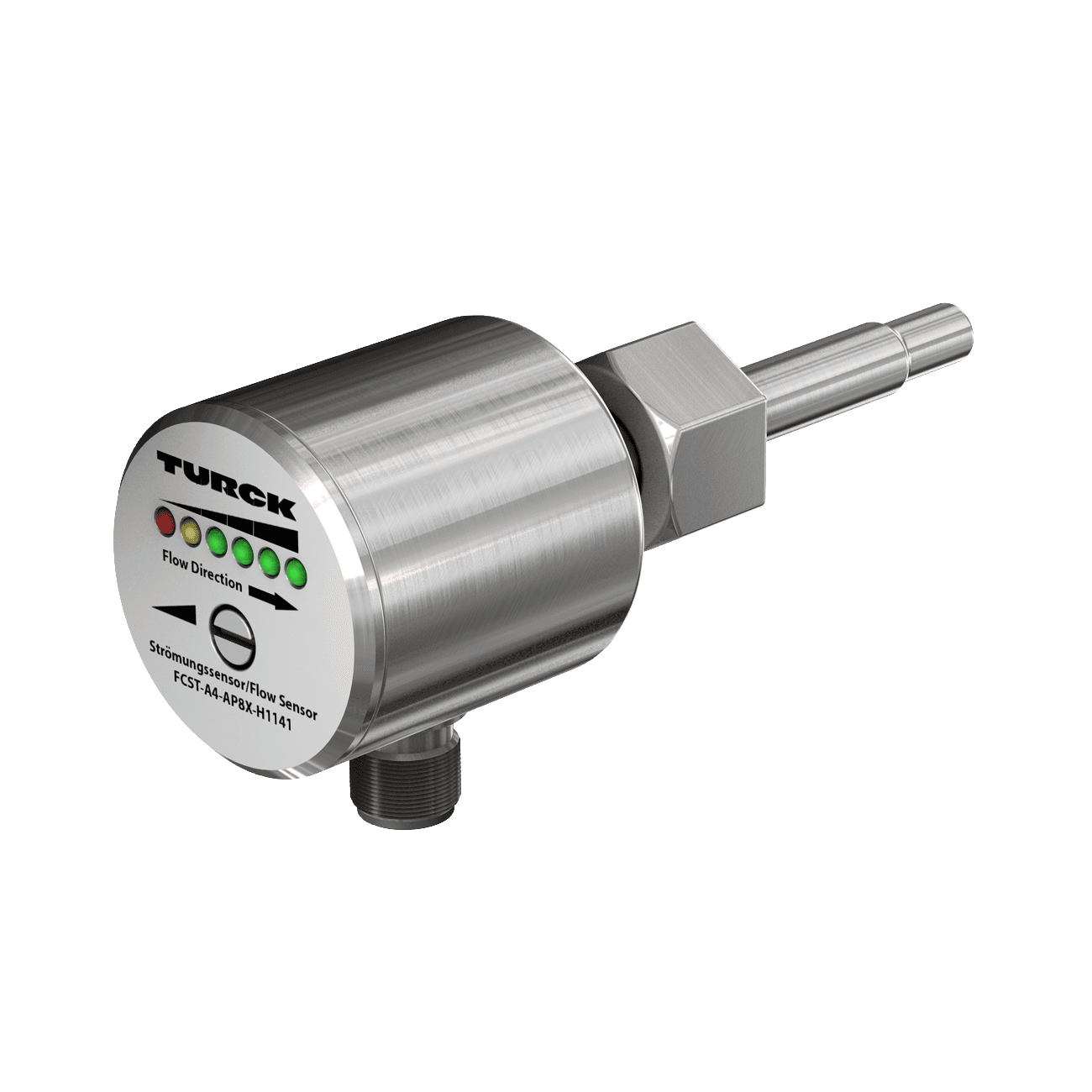

Freely Rotatable FCST Flow Sensor
FCST-A4-AP8X-H1141
Order ID no. 6870265
In Stock
Price Group
D2
List Price
$590.12
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCST-A4-AP8X-H1141
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101303100
Function
Flow monitoring
Detection type
Calorimetric
Gross weight
353
Height
60
Length
140
Net weight
353
Dimension unit
MMT
Weight unit
GRM
Volume
672
Volume unit
CMQ
Width
80
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-20
Application area
Standard
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Process connection
M18 × 1.5 female thread
Medium
liquids
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
PNP
Protection class
IP67
Switching element function
NO contact
Key Features
Process connection
M18 × 1.5 female thread
Output function
PNP
Item Total
$590.12
