Flow Monitoring

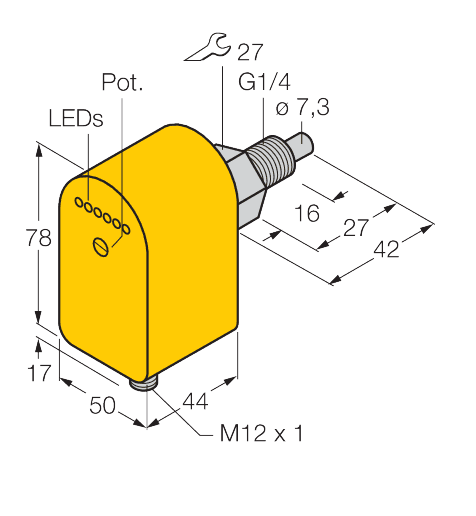

FCS-G1/4A4P-AP8X-H1141
Order ID no. 6870082
In Stock
Price Group
D2
List Price
$750.18
Item Total
$750.18
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-G1/4A4P-AP8X-H1141
Technical Data
Downloads
Function
Flow monitoring
Detection type
Calorimetric
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Application area
Standard
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Immersion
Housing material
Plastic
Housing quality
PBT
Process connection
G 1/4″
Medium
liquids
Media temperature max. (°C)
80
Media temperature min. (°C)
-20
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
PNP
Protection class
IP67
Switching element function
NO contact
Key Features
Process connection
G 1/4″
Output function
PNP
