FTCI-15D15A4P-LI-UP8X-H1141 | TURCK - Your Global Automation Partner
Flow Rate Monitoring

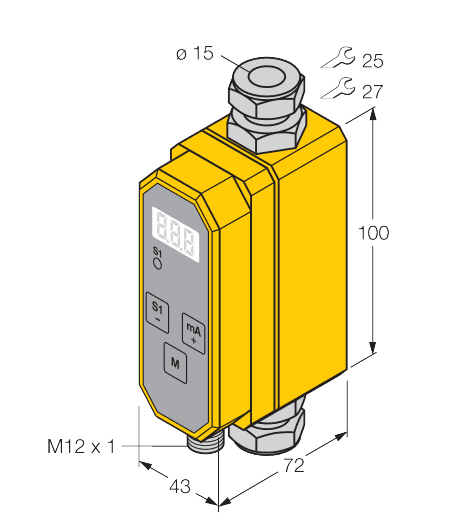

FTCI-15D15A4P-LI-UP8X-H1141
Order ID no. 6870044
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101171754
Function
Flow rate measurement
Detection type
Calorimetric
Gross weight
620
Height
60
Length
190
Net weight
620
Dimension unit
MMT
Weight unit
GRM
Volume
1368
Volume unit
CMQ
Width
120
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
0
Application area
Standard
Electrical connection
Connector
Connector type
M12 x 1
Design
Inline
Housing material
Plastic
Housing quality
PBT
Process connection
Compression fittings for pipes Ø 15 × 1.5 (EN10305-1)
Medium
liquids
Media temperature max. (°C)
90
Media temperature min. (°C)
-10
Mounting conditions
Inline sensor
Operating voltage
DC
Output function
PNP/Analog output
Protection class
IP65
Switching element function
NO/NC programmable
Key Features
Process connection
Compression fittings for pipes Ø 15 × 1.5 (EN10305-1)
Output function
PNP/Analog output
In Stock
Price Group
D2
List Price
$1,098.67
