FTCI-10D10A4P-2UP8X-H1141 | TURCK - Your Global Automation Partner
Flow Rate Monitoring

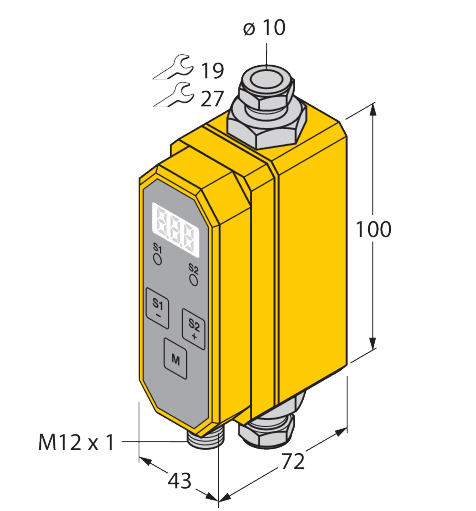

FTCI-10D10A4P-2UP8X-H1141
Order ID no. 6870041
home
Home
Loading...
Technical Data
Downloads
Function
Flow rate measurement
Detection type
Calorimetric
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
0
Application area
Standard
Electrical connection
Connector
Connector type
M12 x 1
Design
Inline
Housing material
Plastic
Housing quality
PBT
Process connection
Compression fittings for pipes Ø 10 x 1 (EN10305-1)
Medium
liquids
Media temperature max. (°C)
90
Media temperature min. (°C)
-10
Mounting conditions
Inline sensor
Operating voltage
DC
Output function
2 x PNP
Protection class
IP65
Switching element function
NO/NC programmable
Key Features
Process connection
Compression fittings for pipes Ø 10 x 1 (EN10305-1)
Output function
2 x PNP
In Stock
Price Group
D2
List Price
$1,302.05
