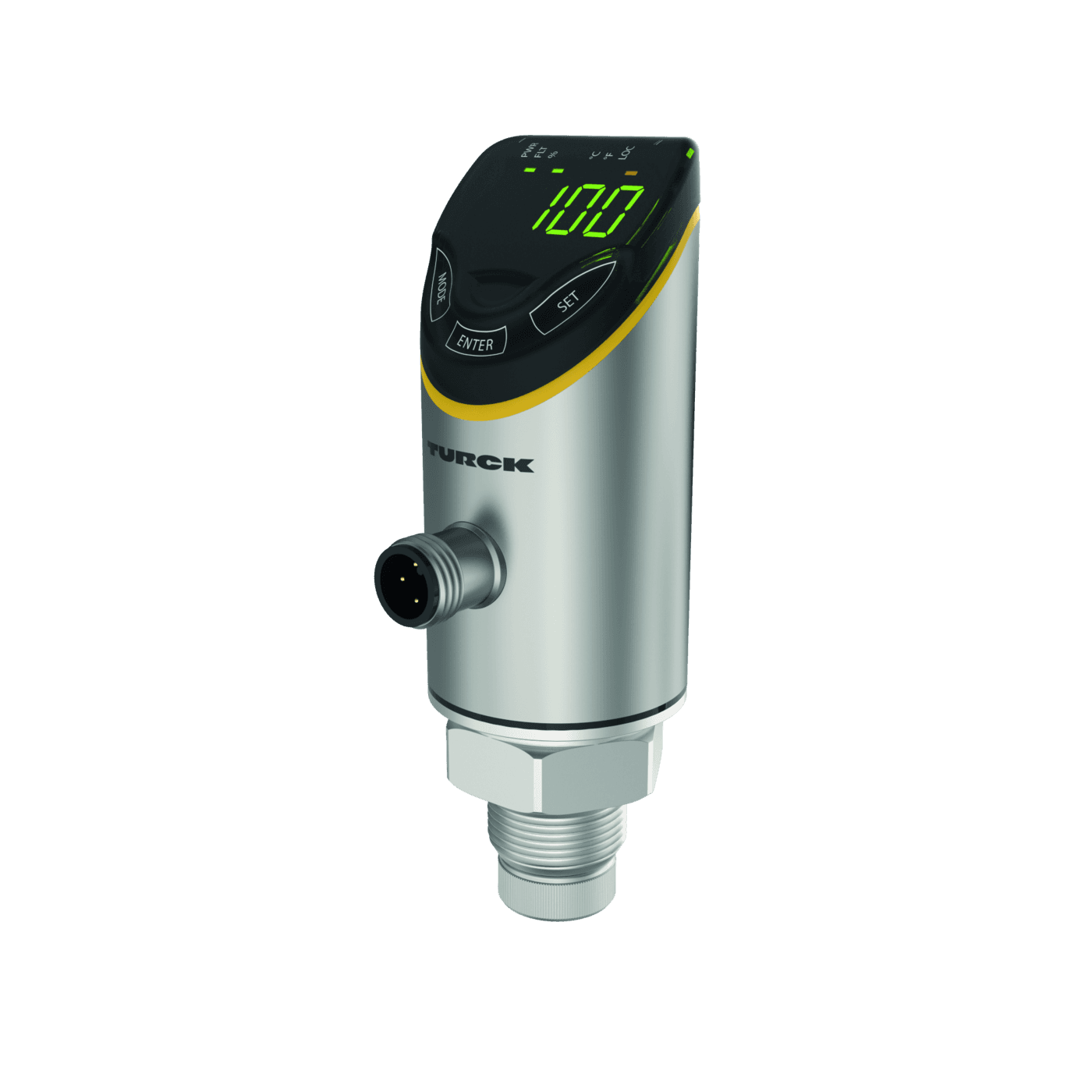

Flow Monitoring Processor Unit

FS121-2UPN8-H1141

Order ID no. 100047864

Function: Flow monitoring
Electrical output: 2 x switching output, IO-Link
Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -40
Approvals: CE, cULus
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 x 1
Design: With display (external probe)

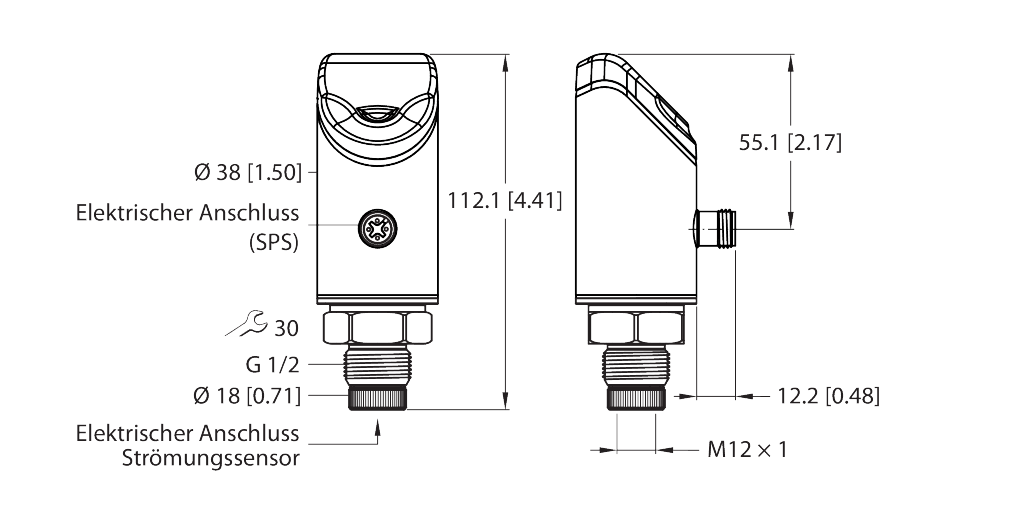

Dimensions: 121,1 mm x 38 mm x 49 mm
Display: 4-digit 12-segment display, rotatable by 180°, red or green
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Mounting conditions: Connection of Turck flow sensors, max. cable length 30 m. Recommendation: shielded cable
Output function: PNP/NPN
Protection class: IP66, IP67, IP69K
Switching element function: NO/NC programmable
