Flow Meter

FP100-300L-63-NA-H1141

Order ID no. 100001050

Function: Flow monitoring
Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -40
Approvals: CE, cULus
Electrical connection: Connector
Connector type: M12 x 1
Design: Without display (integrated probe)

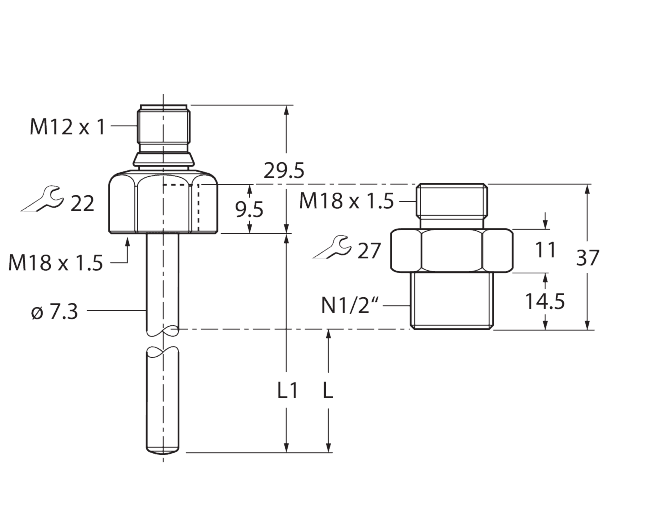

Dimensions: 121,1 mm x 38 mm x 49 mm
Display: 4-digit 12-segment display, rotatable by 180°, red or green
Housing material: Stainless steel
Housing quality: 1.4571 (AISI 316Ti)
Immersion depth L (mm): 41.9
Materials (contact with media): Stainless steel 1.4571 (AISI 316Ti), FKM O-ring
Medium: liquids
Media temperature max. (°C): 85
Media temperature min. (°C): -25
Mounting conditions: Immersion sensor
Protection class: IP66, IP67, IP69K
Bar length (mm): 70
