BC5-Q08-RN6X2-0.85-PSG3S/S90-S250 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

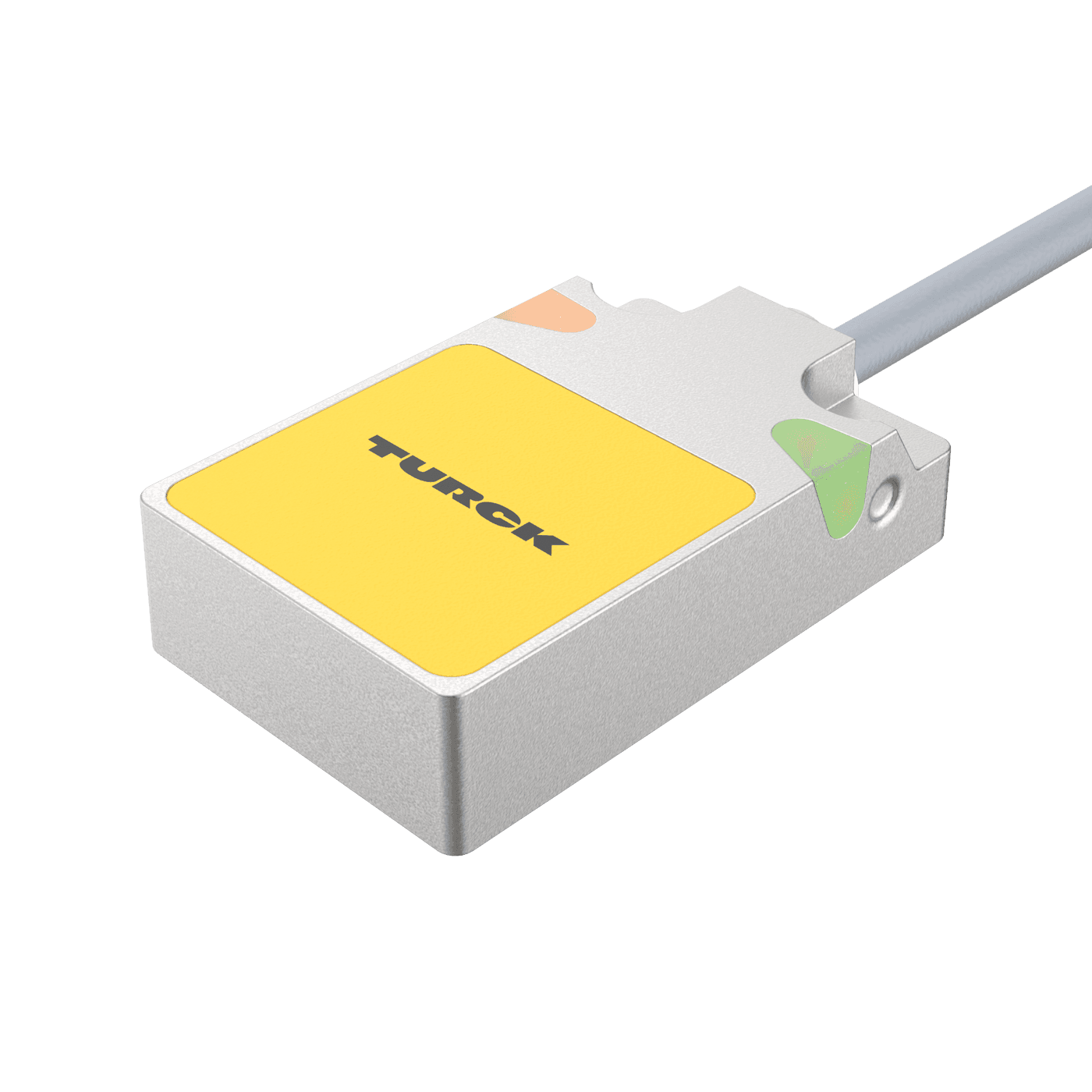

Capacitive Sensor
BC5-Q08-RN6X2-0.85-PSG3S/S90-S250
Order ID no. 2620112
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101149425
Gross weight
36
Height
20
Length
170
Net weight
36
Dimension unit
MMT
Weight unit
GRM
Volume
442
Volume unit
CMQ
Width
130
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular
Dimensions
32 mm
Housing material
Metal
Housing quality
Zamak
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Measuring principle
Capacitive
Protection class
IP68
Quality active face
PP
Rated switching distance (mm)
5
Switching element function
NC contact
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
5
In Stock
Price Group
E1
List Price
$240.47
