BC5-S18-AN4X-H1141/S250 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Capacitive Sensor
BC5-S18-AN4X-H1141/S250
Order ID no. 2503108
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101089127
Gross weight
33
Height
20
Length
100
Net weight
33
Dimension unit
MMT
Weight unit
GRM
Volume
200
Volume unit
CMQ
Width
100
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
UL
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 18 mm

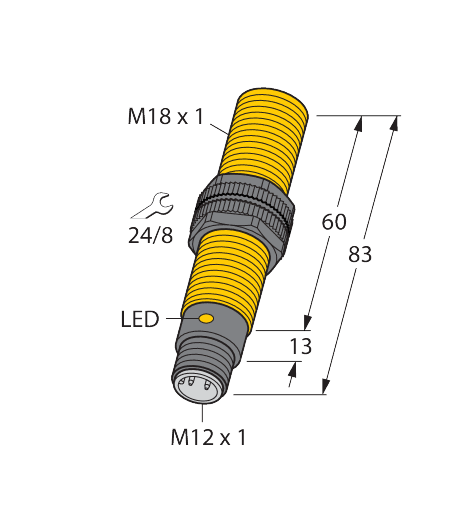

Dimensions
83 mm
Housing material
Plastic
Housing quality
PA12-GF30, PEI
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Measuring principle
Capacitive
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
5
Switching element function
NO contact
Switching frequency (kHz)
0.1
home
Turck-Shop
Sensors
Capacitive Sensors
BC5-S18-AN4X-H1141/S250
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
5
In Stock
Price Group
E1
List Price
$456.96
Item Total
$456.96
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
