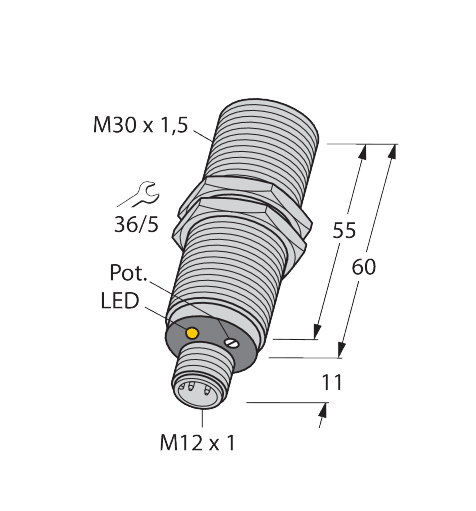

Capacitive Sensor
BC10-M30K-AN4X-H1141
Order ID no. 2503030
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101202113
Gross weight
133
Height
30
Length
70
Net weight
133
Dimension unit
MMT
Weight unit
GRM
Volume
63
Volume unit
CMQ
Width
30
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
UL
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 30 mm
Dimensions
60 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Measuring principle
Capacitive
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
10
In Stock
Price Group
E1
List Price
$456.70
