BCT5-S18-UN6X2-H1151 | TURCK - Your Global Automation Partner

Capacitive Sensor

BCT5-S18-UN6X2-H1151

Order ID no. 2101400

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Communication protocol: IO-Link
Electrical connection: Connector

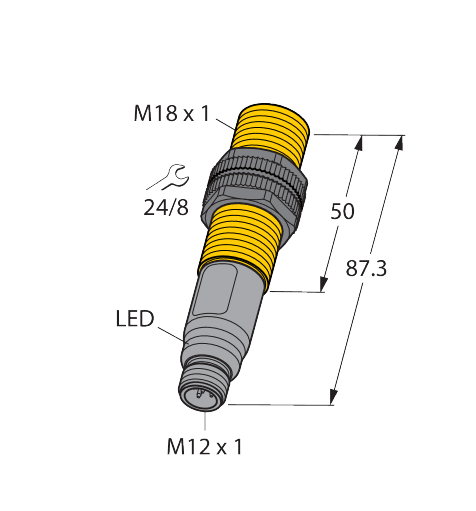

Connector type: M12 x 1
Design: Threaded barrel
Construction size: ⌀ 18 mm
Dimensions: 87,3 mm
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Measuring principle: Capacitive
Protection class: IP67, IP69K
Quality active face: PA12-GF30
Rated switching distance (mm): 7.5
Switching element function: NO/NC
Switching frequency (kHz): 0.01

Key Features

Electrical connection: Connector
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 7.5

In Stock
Price Group	E1
List Price	$251.97
