BC10-QF5.5-AN6X2 7M | TURCK - Your Global Automation Partner

BC10-QF5.5-AN6X2 7M

BC10-QF5.5-AN6X2 7M

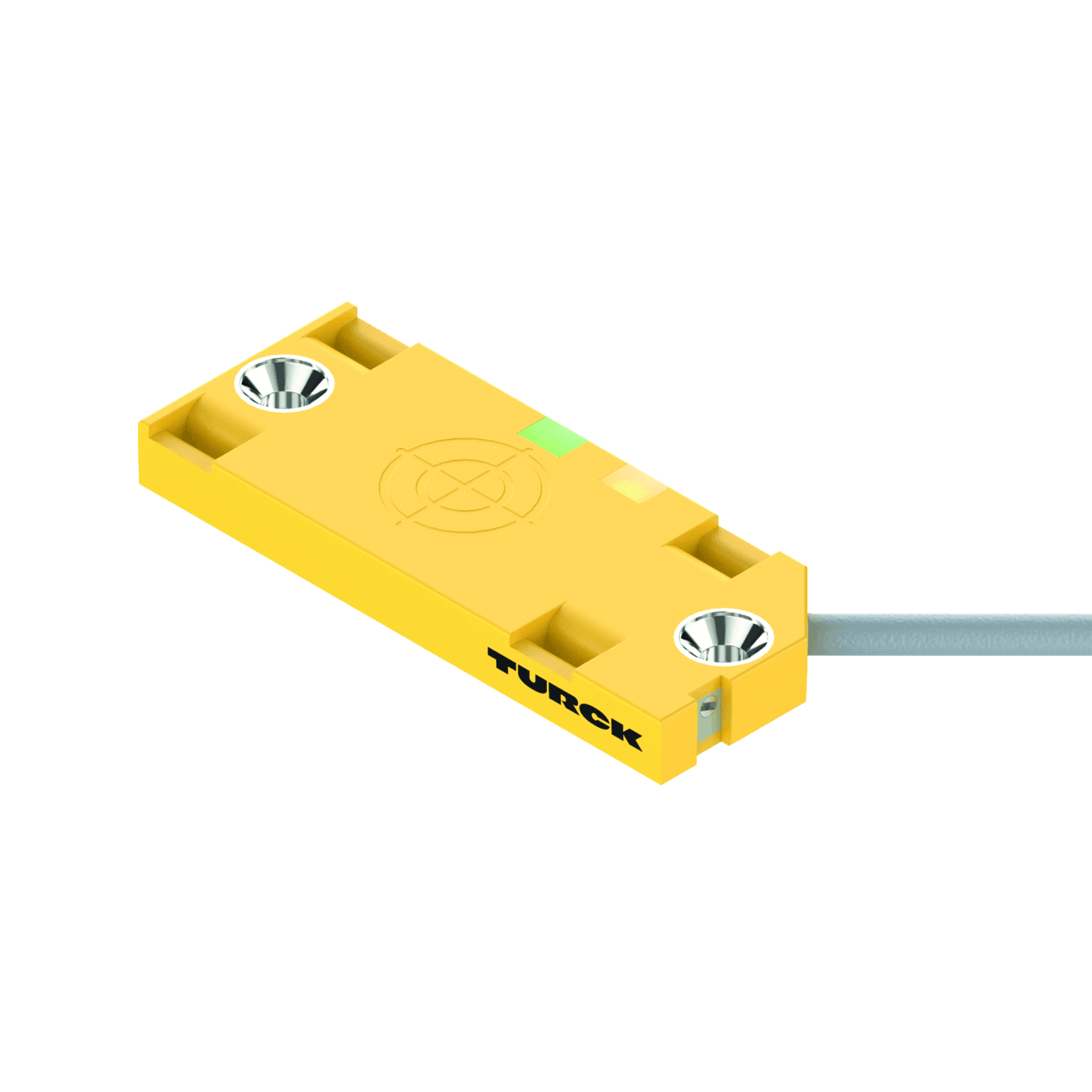

Thumbnail for BC10-QF5.5-AN6X2 7M

Thumbnail for BC10-QF5.5-AN6X2 7M

Capacitive Sensor

BC10-QF5.5-AN6X2 7M

Order ID no. 100000977

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101446197
Gross weight: 90
Height: 20
Length: 210
Net weight: 90
Dimension unit: MMT
Weight unit: GRM
Volume: 0.588
Volume unit: DMQ
Width: 140
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: UL
Electrical connection: Cable
Design: Rectangular

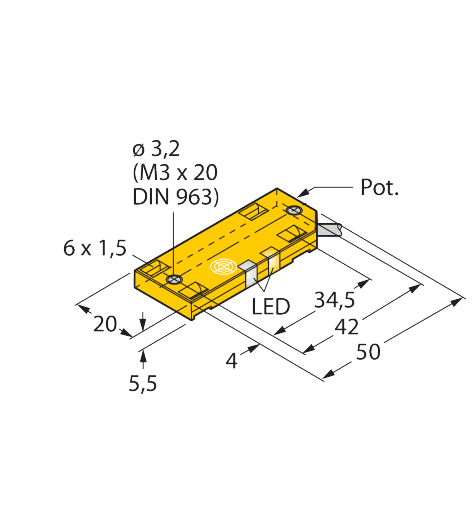

Dimensions: 54 mm
Housing material: Plastic
Housing quality: PP
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PP
Rated switching distance (mm): 10
Switching element function: NO contact
Switching frequency (kHz): 0.1

Key Features

Electrical connection: Cable
Mounting conditions: Flush
Output function: NPN
Rated switching distance (mm): 10

In Stock
Price Group	D2
List Price	$178.94
