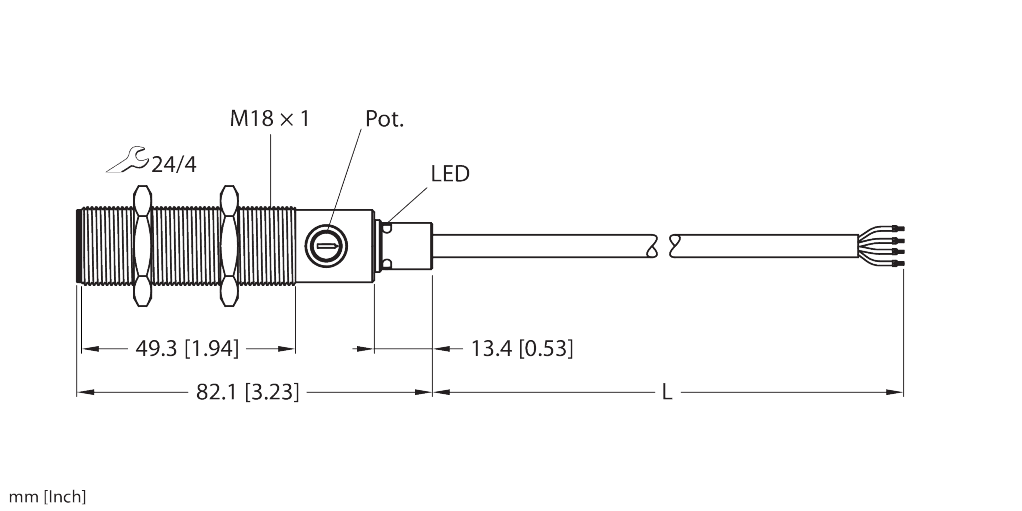

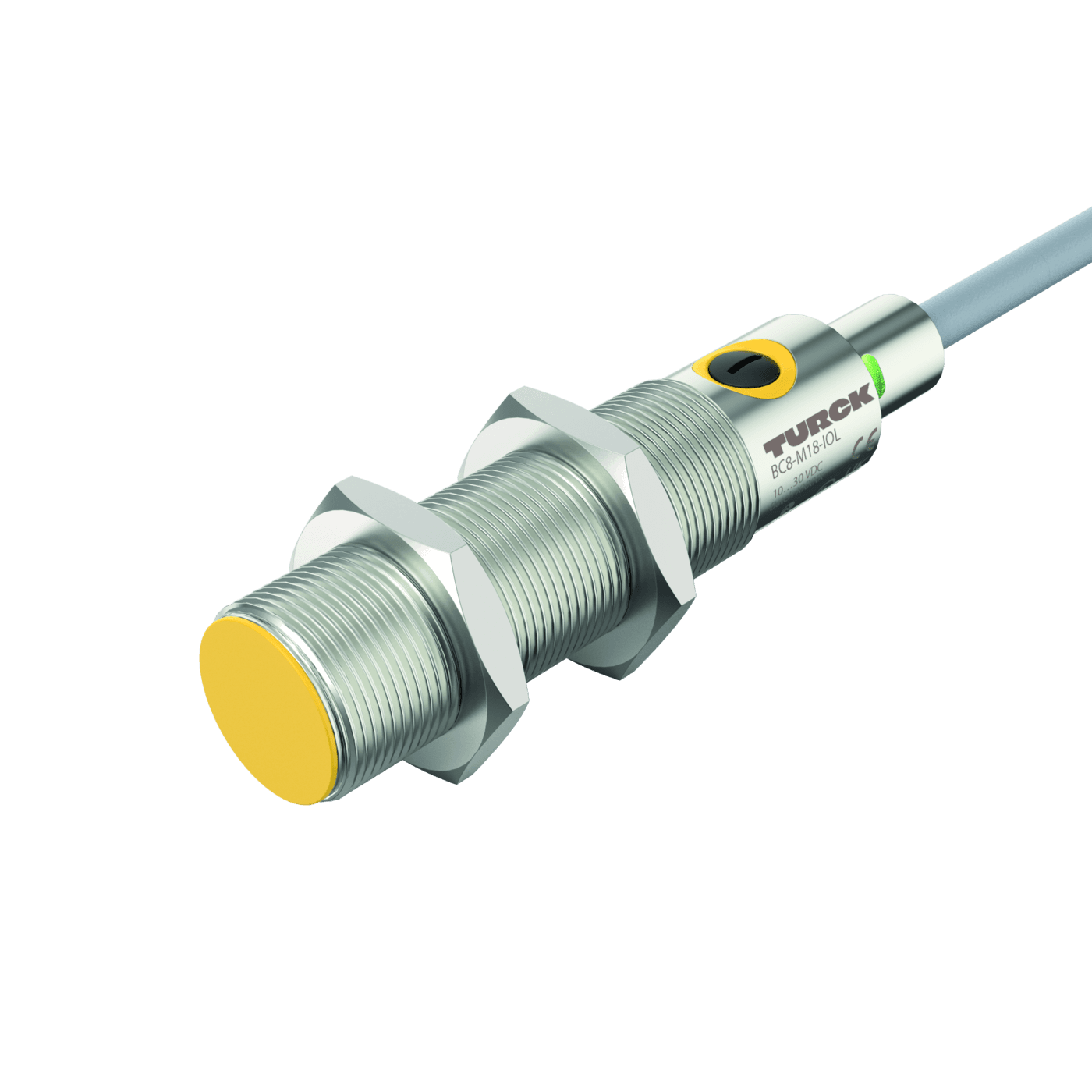

BC8-M18-IOL

Order ID no. 100050172

Base unit: PCE
EAN/UPC code: 4047101670509
Function: Level detection, For dry granules, For highly viscous media, Continuous level measurement
Gross weight: 143
Height: 20
Length: 215
Net weight: 143
Dimension unit: MMT
Weight unit: GRM
Volume: 1.161
Volume unit: DMQ
Width: 270
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -40
Cable length (m): 2
Communication protocol: IO-Link
Electrical connection: Cable
Connector type: Open end
Design: Threaded barrel
Construction size: ⌀ 18 mm
Housing material: Metal/plastic
Housing quality: CuZn
Medium: Bulk goods, liquids
Media temperature max. (°C): 85
Media temperature min. (°C): -40
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Output function: PNP/NPN
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO/NC programmable
