Analog Signal Isolator

IM35-22EX-HI/24VDC

Order ID no. 7506515

Base unit: PCE
EAN/UPC code: 4047101117271
Gross weight: 172
Height: 30
Length: 110
Net weight: 172
Functional safety (SIL/PL): SIL2
Signal type: Analog output (HART transparent)
Nominal voltage: 24 VDC
Dimension unit: MMT
Weight unit: GRM
Volume: 330
Volume unit: CMQ
Width: 100
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, IECEx, UL, cFMus, TR CU, Metrological Approval Russia
Number of channels: 2
Electrical connection: 4 x 3-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal
Current output: In mA

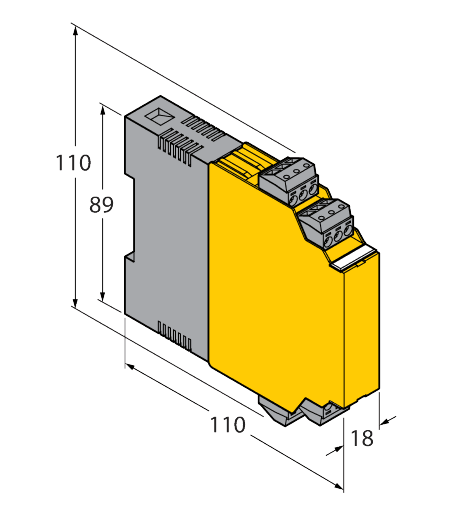

Dimensions: 110 mm x 18 mm x 110 mm
Ex version: yes
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Power supply: 24 VDC
Protection class: IP20
