IMS-TI-PT100/24V | TURCK - Your Global Automation Partner
Temperature measuring amplifier
IMS-TI-PT100/24V
Order ID no. 7504012
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101349115
Gross weight
60
Height
5
Length
110
Net weight
60
Signal type
Temperature input
Nominal voltage
24 VDC
Dimension unit
MMT
Weight unit
GRM
Volume
49.5
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Approvals
UL, GOST
Number of channels
1
Electrical connection
Screw terminals
Current output
In mA

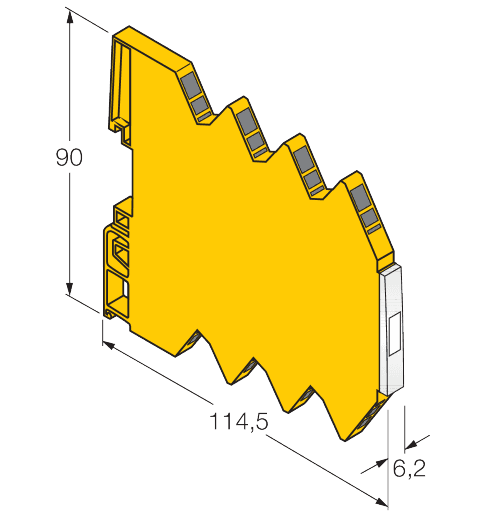

Dimensions
114,5 mm x 6,2 mm x 90 mm
Ex version
no
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Power supply
24 VDC
Protection class
IP20
Voltage output
In V
Key Features
Number of channels
1
Signal type
Temperature input
home
Turck-Shop
Interface Technology
Signal Conditioners
IMS-TI-PT100/24V
Nominal voltage
24 VDC
In Stock
Price Group
D3
List Price
$326.21
Item Total
$326.21
