Isolating switching amplifier
IM12-DI03-1S-1NAM1R-PR/24VDC/CC
Order ID no. 7580051
In Stock
Price Group
D3
List Price
$304.18
Item Total
$304.18
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Interface Technology
Safety Barriers
IM12-DI03-1S-1NAM1R-PR/24VDC/CC
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101420845
Gross weight
162
Height
30
Length
130
Net weight
162
Functional safety (SIL/PL)
SIL2
Signal type
Digital input
Nominal voltage
Power bridge 24 VDC
Dimension unit
MMT
Weight unit
GRM
Volume
0.507
Volume unit
DMQ
Width
130
Approvals
ATEX, cULus
Number of channels
1
Electrical connection
Removable spring-type terminals, 2-pin

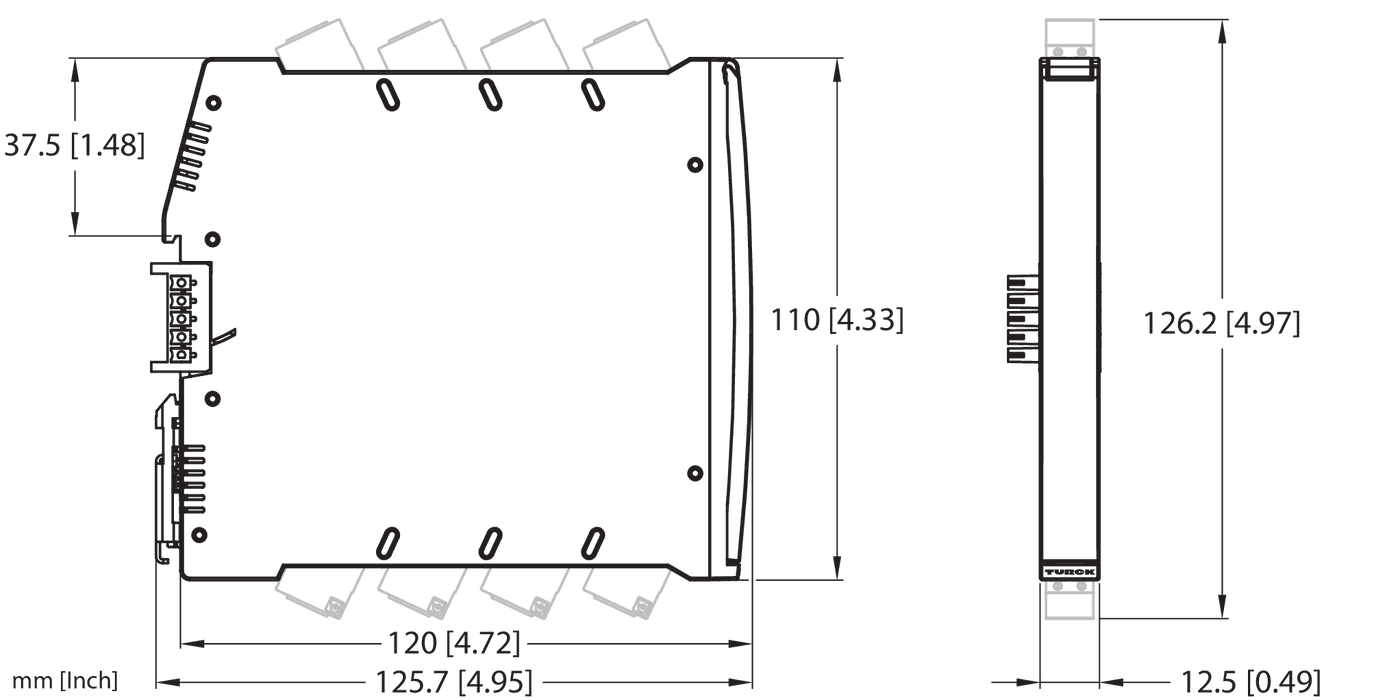

Dimensions
120 mm x 12,5 mm x 128 mm
Ex version
no
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Digital output
Relay output
Connection variant
Power bridge with collective fault signal
Power supply
24 VDC
Protection class
IP20
Key Features
Number of channels
1
Signal type
Digital input
Nominal voltage
Power bridge 24 VDC
