IMX12-DI01-2S-2T-0/24VDC/CC | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

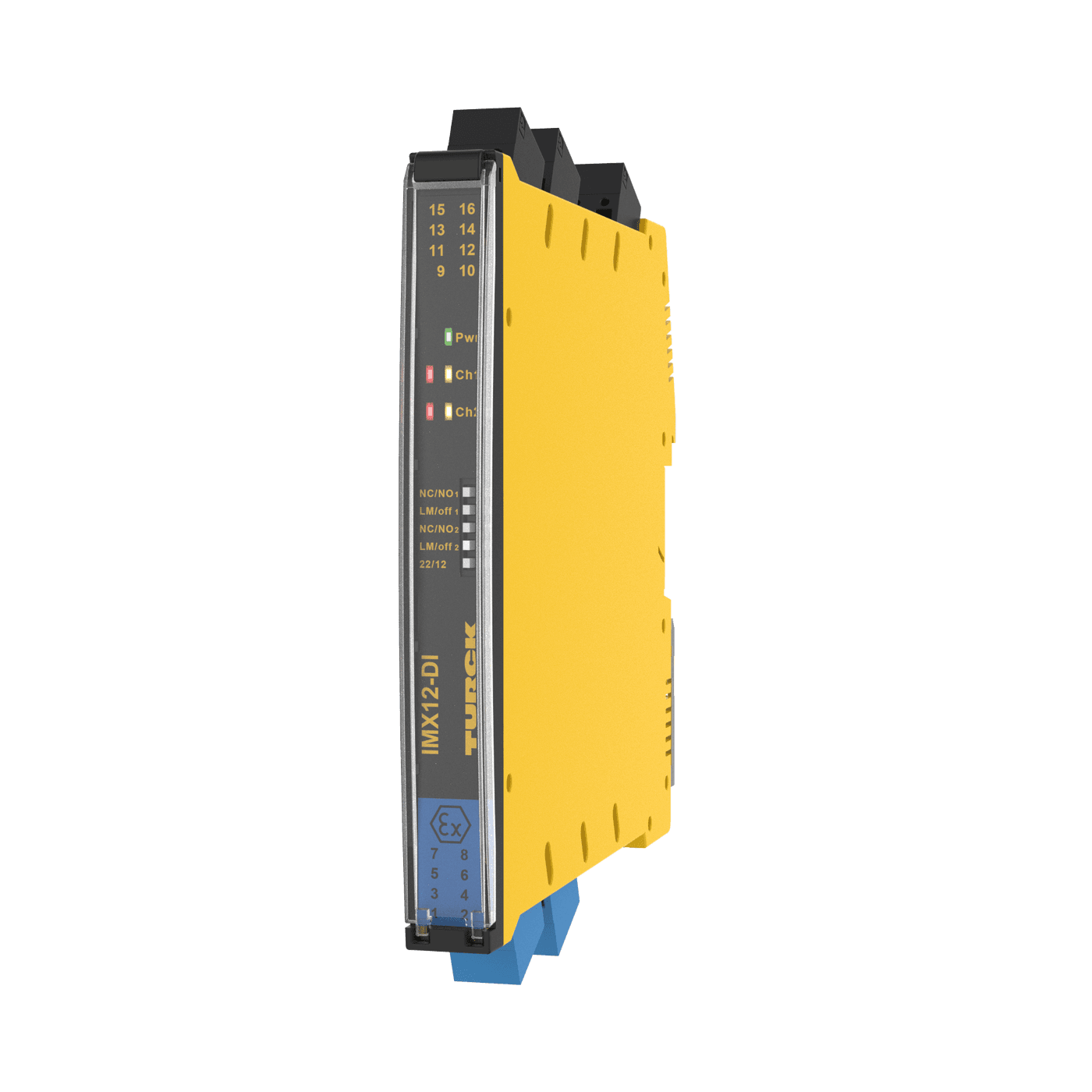

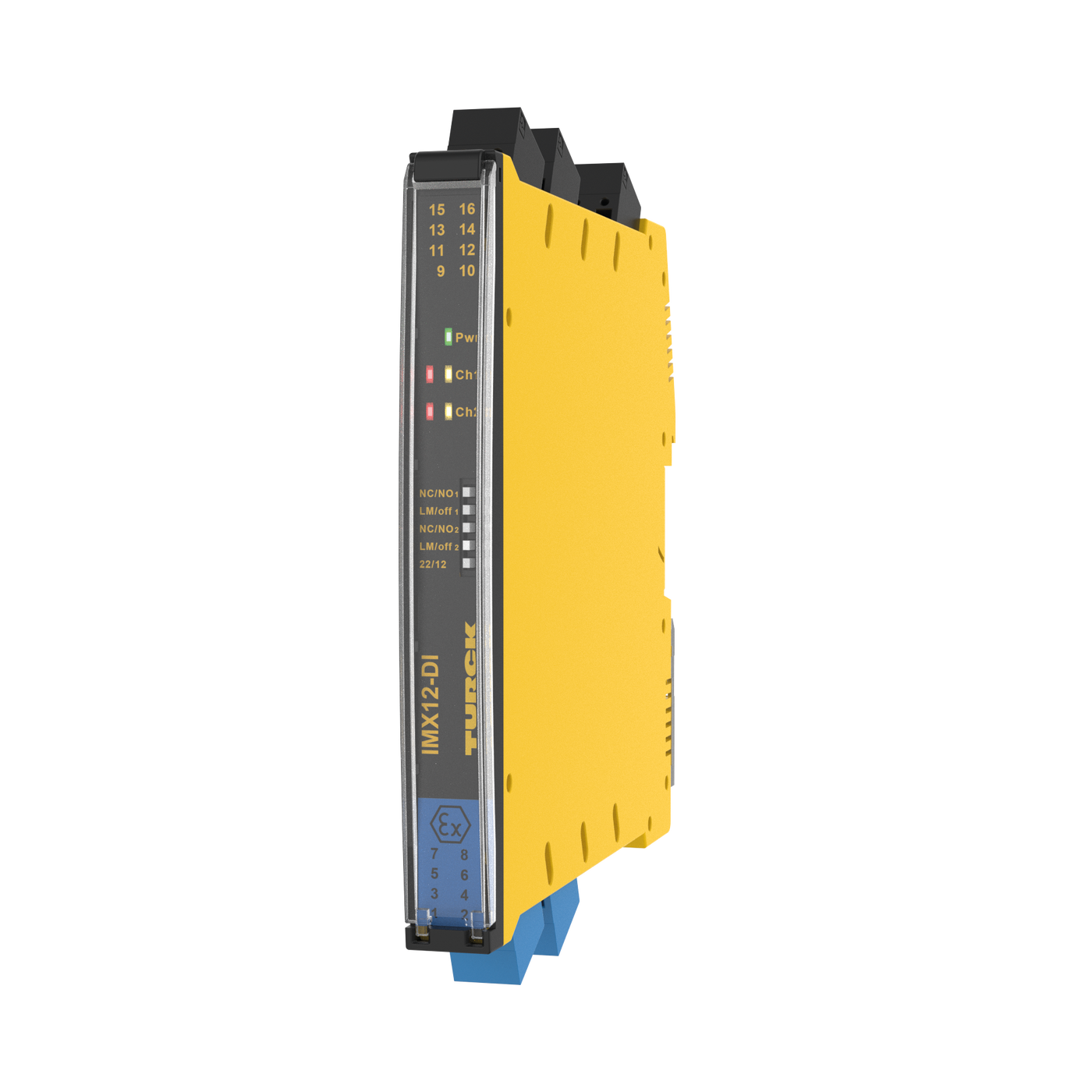

Isolating switching amplifier
IMX12-DI01-2S-2T-0/24VDC/CC
Order ID no. 7580022
home
Home
Loading...
Technical Data
Downloads
Functional safety (SIL/PL)
SIL2
Signal type
Digital input
Nominal voltage
24 VDC
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, cULus, NEPSI, INMETRO, KOSHA, TIIS, TR CU, DNV GL
Number of channels
2
Electrical connection
Removable spring-type terminals, 2-pin
Dimensions
120 mm x 12,5 mm x 128 mm
Ex version
yes
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Digital output
Transistor output
Power supply
24 VDC
Protection class
IP20
Key Features
Number of channels
2
Signal type
Digital input
Nominal voltage
24 VDC
In Stock
Price Group
D3
List Price
$299.41
