Home
Products

Isolating switching amplifier

IMX12-DI03-1S-1NAM1T-0/24VDC

Order ID no. 7580004

In Stock
Price Group	D3
List Price	$270.83

Item Total$270.83

Quantity

Contact Support

homeTurck-Shop
Interface Technology
Safety Barriers
IMX12-DI03-1S-1NAM1T-0/24VDC

Base unit: PCE
EAN/UPC code: 4047101310382
Gross weight: 147
Height: 20
Length: 130
Net weight: 147
Functional safety (SIL/PL): SIL2
Signal type: Digital input
Nominal voltage: 24 VDC
Dimension unit: MMT
Weight unit: GRM
Volume: 312
Volume unit: CMQ
Width: 120
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, IECEx, NEPSI, KOSHA, TR CU
Number of channels: 1
Electrical connection: Removable screw terminals, 2-pin

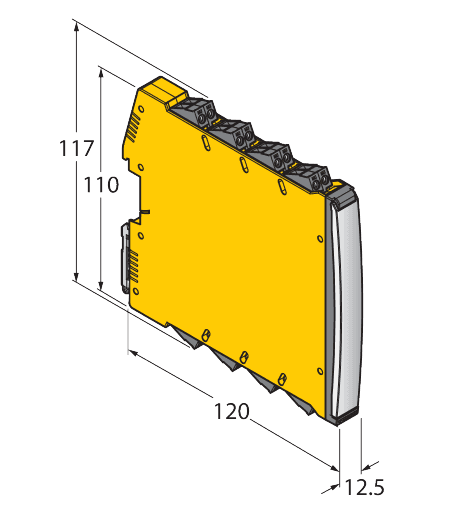

Dimensions: 120 mm x 12,5 mm x 117 mm
Ex version: yes
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: NAMUR and transistor output
Power supply: 24 VDC
Protection class: IP20

Key Features

Number of channels: 1
Signal type: Digital input
Nominal voltage: 24 VDC
