Isolating switching amplifier

IM12-22EX-R/230VAC

Order ID no. 7505641

Item Total$251.68

Quantity

Base unit: PCE
EAN/UPC code: 4047101116380
Gross weight: 149
Height: 30
Length: 150
Net weight: 149
Signal type: Digital input
Nominal voltage: 230 VAC
Dimension unit: MMT
Weight unit: GRM
Volume: 540
Volume unit: CMQ
Width: 120
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -25
Approvals: ATEX, TR CU
Number of channels: 2
Electrical connection: 4 x 3-pin removable terminal blocks, reverse polarity protected, screw terminal

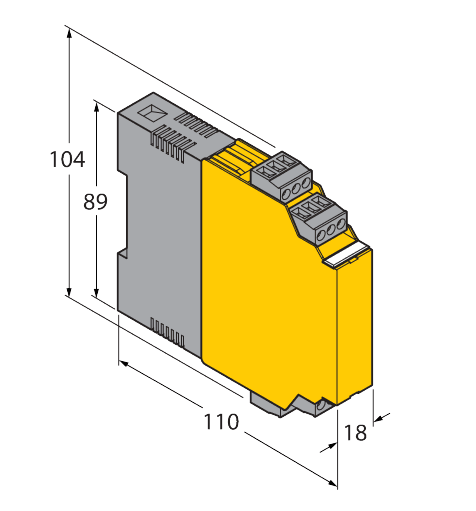

Dimensions: 104 mm x 18 mm x 110 mm
Ex version: yes
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Digital output: Relay output
Power supply: 230 VAC
Protection class: IP20
