IMX12-CCM05-MTI-1I2T-HC/L | TURCK - Your Global Automation Partner

IMX12-CCM05-MTI-1I2T-HC/L

IMX12-CCM05-MTI-1I2T-HC/L

Thumbnail for IMX12-CCM05-MTI-1I2T-HC/L

Thumbnail for IMX12-CCM05-MTI-1I2T-HC/L

Cabinet Guard

IMX12-CCM05-MTI-1I2T-HC/L

Order ID no. 100030579

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101558463
Gross weight: 135
Height: 0
Length: 0
Net weight: 105.36
Nominal voltage: 24 VDC
Dimension unit: MMT
Weight unit: GRM
Volume: 0
Width: 0
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, IECEx
Electrical connection: Removable screw terminals, 2-pin

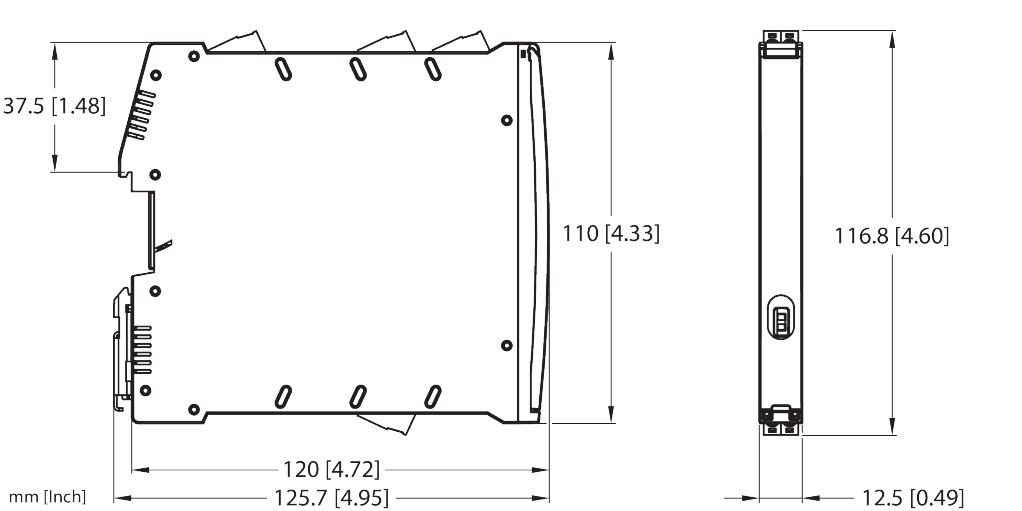

Dimensions: 120 mm x 12,5 mm x 117 mm
Ex version: yes
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Power supply: 24 VDC
Protection class: IP20

Key Features

Electrical connection: Removable screw terminals, 2-pin
Nominal voltage: 24 VDC

In Stock
Price Group	D3
List Price	$706.72
