TN-UHF-Q300-AUS-CDS | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
UHF Reader
TN-UHF-Q300-AUS-CDS
Order ID no. 100000925
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101445374
Gross weight
3653
Height
140
Radio communication and protocol standards
ISO 18000-63, EPCglobal Gen 2
Length
430
Net weight
3653
Region (UHF)
Australia (920...926 MHz)
Technology
UHF RFID
Dimension unit
MMT
Weight unit
GRM
Volume
29.04
Volume unit
DMQ
Width
430
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-20
Connector type
RP-TNC
Design
Rectangular

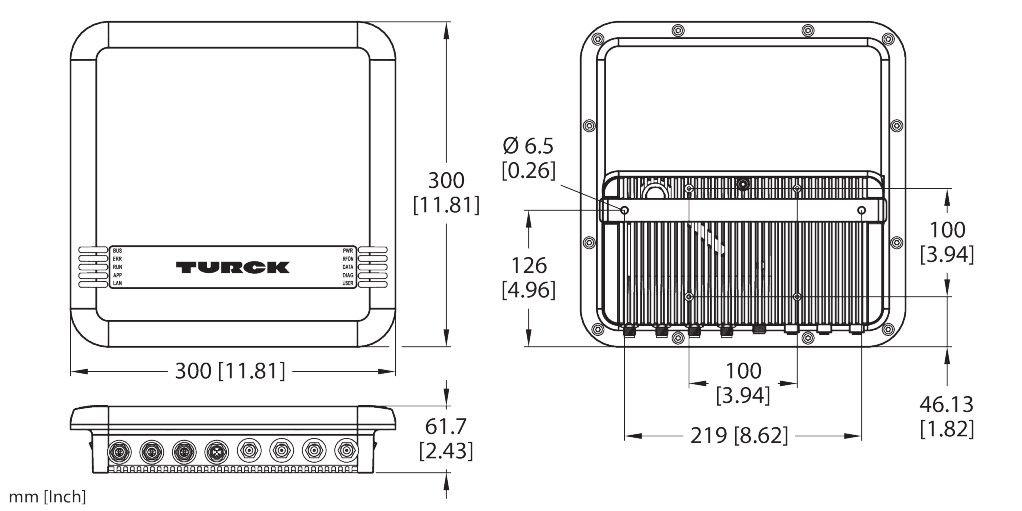

Dimensions
300 mm x 300 mm x 61,7 mm
Connection technology Ethernet
1 x M12, 4-pin, D-coded
Transmission rate Ethernet
10/100 Mbps
Network protocol
PROFINET, Modbus TCP, EtherNet/IP, TCP/IP
Housing material
Aluminium
Housing quality
AL
Housing surface
Silver
Mounting conditions
Non-flush
Operating voltage
DC
Programming
CODESYS V3
Protection class
IP67
Quality active face
PA6-GF30
Switching element function
Read/Write
Key Features
Network protocol
PROFINET, Modbus TCP, EtherNet/IP, TCP/IP
Programming
CODESYS V3
Protection class
IP67
Region (UHF)
Australia (920...926 MHz)
In Stock
Price Group
B1
List Price
$3,801.57
