- Base unit
- PCE
- EAN/UPC code
- 4047101306118
- Gross weight
- 3175
- Height
- 145
- Length
- 485
- Net weight
- 3175
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 19.691
- Volume unit
- DMQ
- Width
- 280
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX, cFM, cFMus, IECEx, CCC, INMETRO, KOSHA, EAC Ex, UKCA, CE
- Electrical connection
- 4 x 4 clamps per module
- Connection technology signal
- Screw terminal, Cage clamp terminal

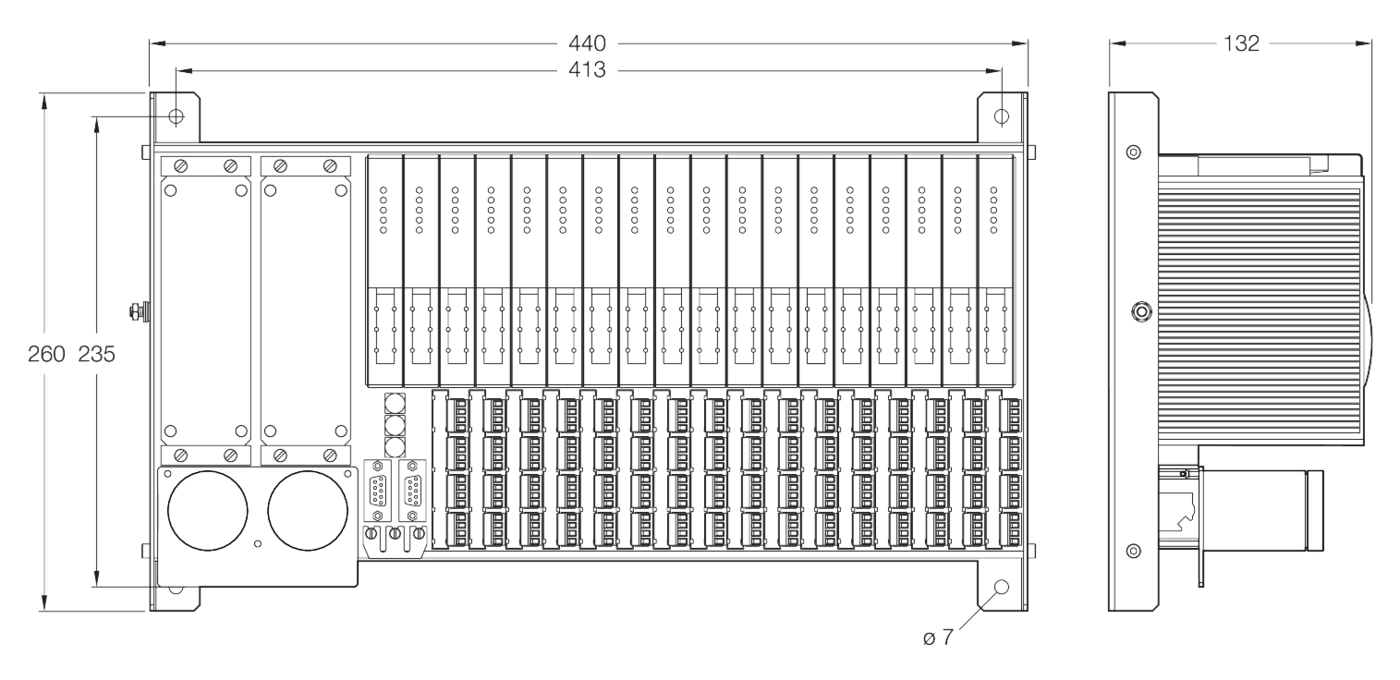

- Dimensions
- 260 mm x 440 mm x 130 mm
- Network protocol
- PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
- Fieldbus connection technology
- 2 × D-SUB, 9-pin
- Housing material
- Aluminium, extrusion profile
- Device type
- Module Racks
- Protection class
- IP20
