excom I/O System

AOH401EX

Order ID no. 6884267

Base unit: PCE
EAN/UPC code: 4047101416817
Gross weight: 141
Height: 30
Length: 111
Net weight: 141
Dimension unit: MMT
Weight unit: GRM
Volume: 499.5
Volume unit: CMQ
Width: 150
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, CMI, UKCA, CE
Connection technology signal: Screw terminal, Cage clamp terminal

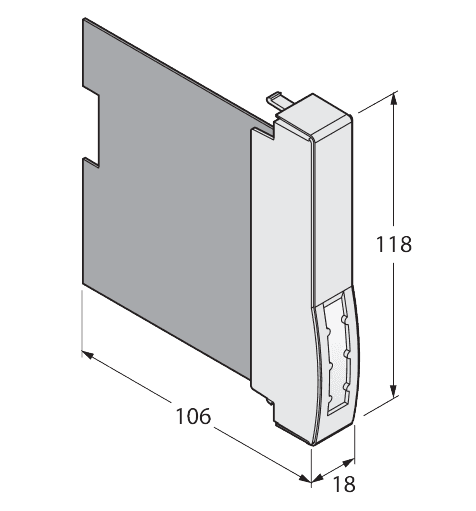

Dimensions: 118 mm x 18 mm x 106 mm
Network protocol: PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET
Housing material: Plastic
Number of channels: 4
Device type: I/O Module
Protection class: IP20
Signal type: Analog output, HART
