BL20 electronic module
BL20-2DO-24VDC-0.5A-N
Order ID no. 6827025
In Stock
Price Group
F1
List Price
$81.45
Item Total
$81.45
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Fieldbus Technology
I/O Systems
BL20-2DO-24VDC-0.5A-N
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
Screw terminal, Cage clamp terminal

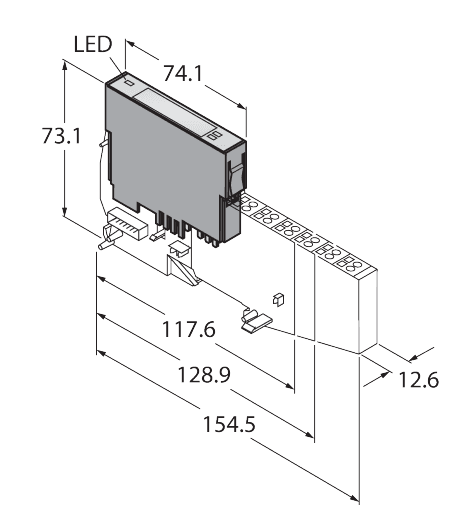

Dimensions
74,1 mm x 12,6 mm x 55,4 mm
Installation area
zone 2
Number of channels
2
Operating voltage
DC
Output type
NPN
Output voltage
24 VDC
Device type
I/O Module
Protection class
IP20
Signal type
Digital output
Key Features
Connection technology signal
Screw terminal, Cage clamp terminal
Protection class
IP20
Signal type
Digital output
