Compact I/O station for DeviceNet
FDN20-4S-4XSG-E
Order ID no. F0178
In Stock
Price Group
D1
List Price
$323.50
Item Total
$323.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
cULus
Connection technology signal
Screw terminal

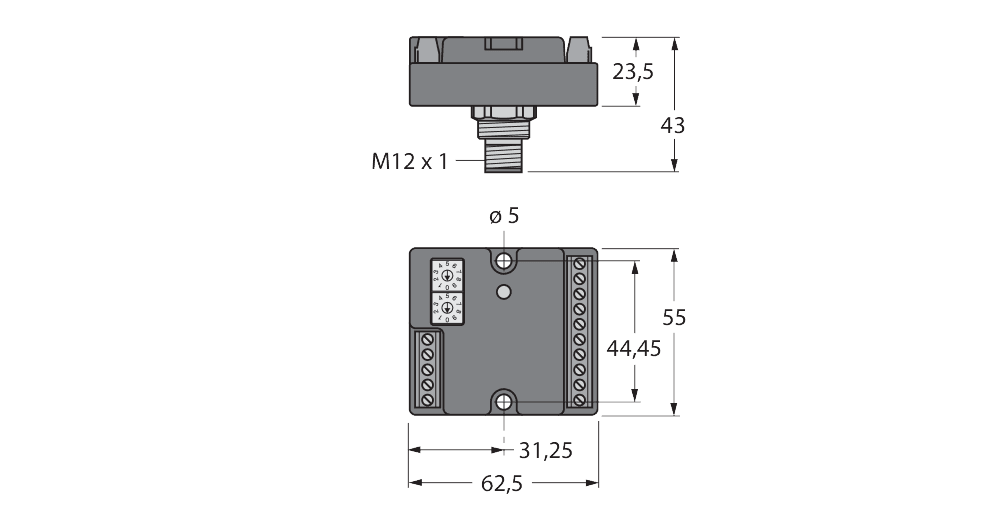

Dimensions
62,5 mm x 55 mm x 23,5 mm
Network protocol
DeviceNet
Fieldbus connection technology
Screw terminals or M12
Fieldbus transmission rate
125/250/500 kbps
Installation area
non-Ex
Number of channels
8
Output voltage
18…26 VDC
Voltage supply connection
Screw terminals or M12
Device type
I/O Module, Compact station
Protection class
IP20
Signal type
Digital input, Digital output
Key Features
Connection technology signal
Screw terminal
Network protocol
DeviceNet
Protection class
IP20
Signal type
Digital input, Digital output
