SDNB-0404D-0007 | TURCK - Your Global Automation Partner
piconet stand-alone module for DeviceNet
SDNB-0404D-0007
Order ID no. 6824109
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101178340
Gross weight
244
Height
30
Length
180
Net weight
244
Dimension unit
MMT
Weight unit
GRM
Volume
270
Volume unit
CMQ
Width
50
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M8

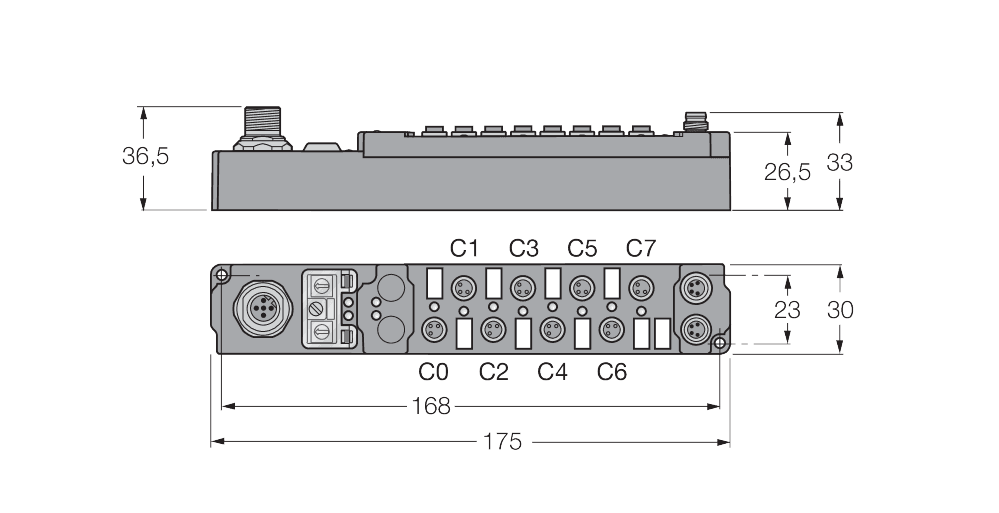

Dimensions
175 mm x 30 mm x 26,5 mm
Network protocol
DeviceNet
Fieldbus connection technology
1 × M12
Fieldbus transmission rate
125/250/500 kbps
Number of channels
8
Operating voltage
DC
Output voltage
20…29 VDC from load voltage
Voltage supply connection
2 x M8
Device type
I/O Module, Compact station
Protection class
IP67
Signal type
Digital output, Digital input/output, Digital input
Key Features
Connection technology signal
M8
Network protocol
DeviceNet
Protection class
IP67
Signal type
Digital output, Digital input/output, Digital input
In Stock
Price Group
D1
List Price
$813.06
