piconet stand-alone module for PROFIBUS-DP
SDPB-0002D-0002
Order ID no. 6824060
In Stock
Price Group
D1
List Price
$892.63
Item Total
$892.63
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Fieldbus Technology
I/O Modules
SDPB-0002D-0002
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M12

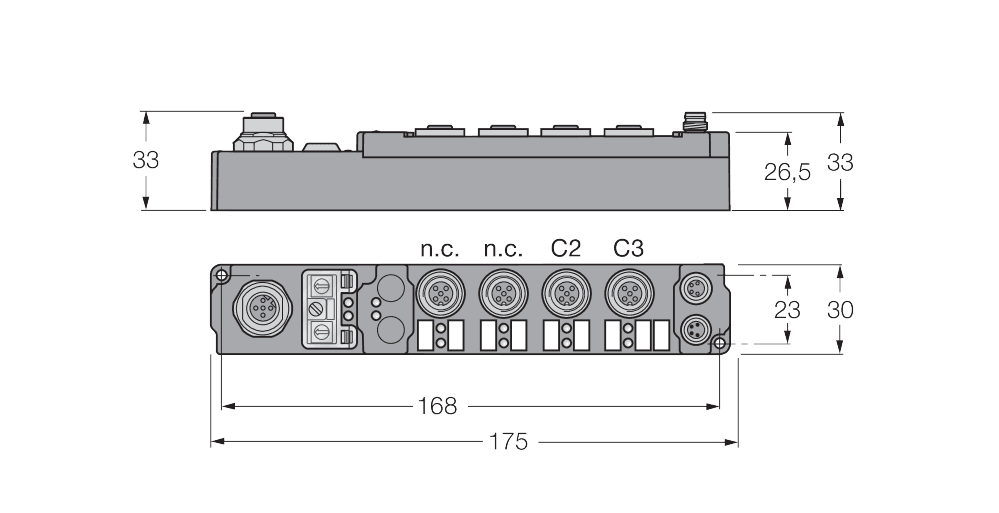

Dimensions
175 mm x 30 mm x 26,5 mm
Network protocol
PROFIBUS-DP
Fieldbus connection technology
1 × M12
Fieldbus transmission rate
9.6 kbps …12 Mbps
Number of channels
2
Operating voltage
DC
Voltage supply connection
2 x M8
Device type
I/O Module, Compact station
Protection class
IP67
Signal type
PWM
Key Features
Connection technology signal
M12
Network protocol
PROFIBUS-DP
Protection class
IP67
Signal type
PWM
