- Base unit
- PCE
- EAN/UPC code
- 4047101285789
- Gross weight
- 646
- Height
- 40
- Length
- 240
- Net weight
- 646
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 672
- Volume unit
- CMQ
- Width
- 70
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Connection technology signal
- M12

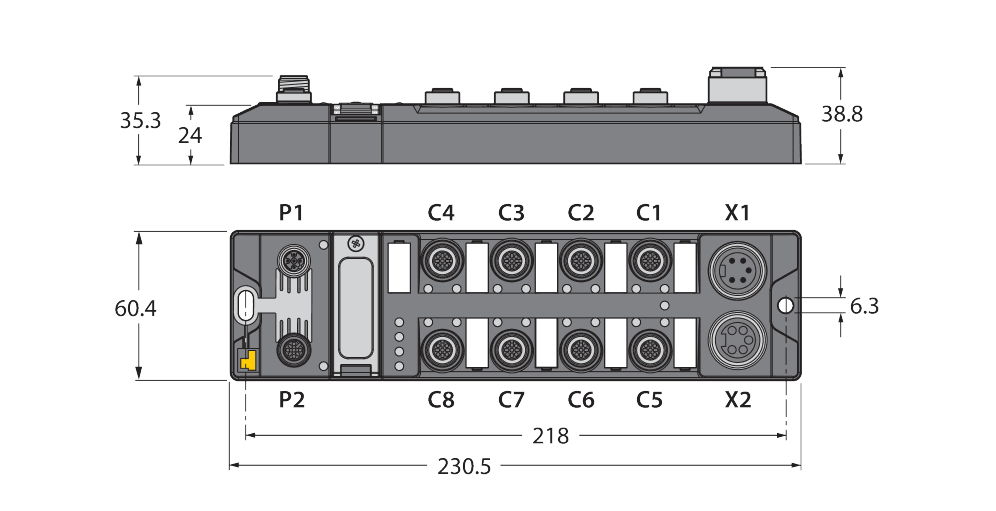

- Dimensions
- 230,4 mm x 60,4 mm x 39 mm
- Network protocol
- PROFIBUS-DP
- Fieldbus connection technology
- 2 × M12, 5-pin, reverse-coded
- Fieldbus transmission rate
- 9.6 kbps …12 Mbps
- Installation area
- zone 2, zone 22
- Number of channels
- 16
- Output voltage
- 24 VDC from potential group
- Voltage supply connection
- 7/8″, 5-pin
- Device type
- I/O Module, Compact station
- Protection class
- IP65, IP67, IP69K
- Signal type
- Digital output
