- Base unit
- PCE
- EAN/UPC code
- 4047101453621
- Gross weight
- 654
- Height
- 50
- Length
- 240
- Net weight
- 654
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 0.84
- Volume unit
- DMQ
- Width
- 70
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Connection technology signal
- M12
- Dimensions
- 230,5 mm x 60,4 mm x 38,8 mm
- Network protocol
- PROFIsafe via PROFINET
- Fieldbus connection technology
- 2 x M12, 4-pin, D-coded
- Fieldbus transmission rate
- 100 Mbps
- Installation area
- zone 2, zone 22
- Number of channels
- 16
- Voltage supply connection
- 7/8″, 5-pin

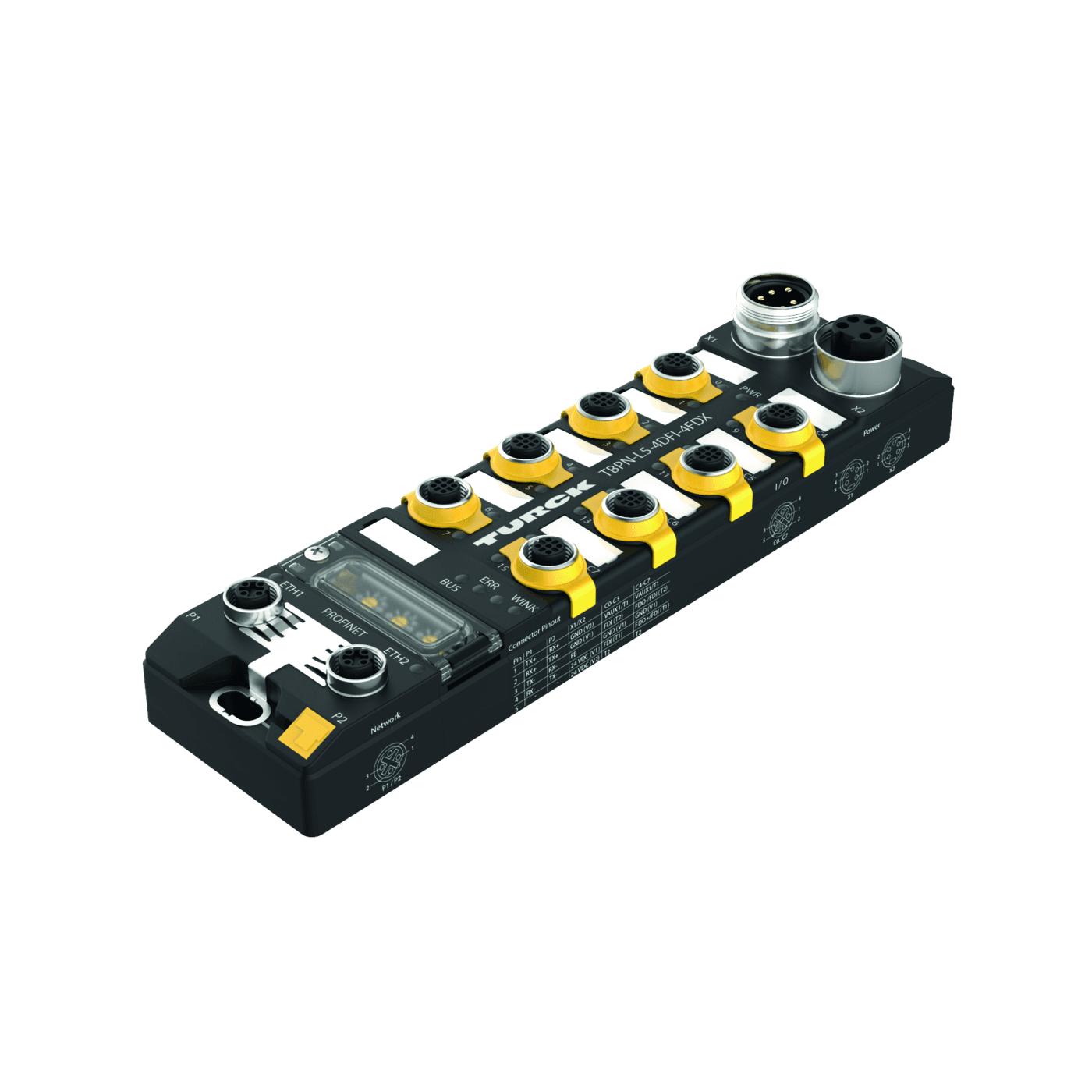

- Device type
- I/O Module, Compact station
- Protection class
- IP65, IP67, IP69K
- PL acc. to EN ISO 13849-1
- Level e
- SIL acc. to IEC 61508
- 3
- Category acc. to ISO 13849-1:2008
- 4
- Signal type
- Fail-safe inputs, Fail-safe inputs and outputs
