- Base unit
- PCE
- EAN/UPC code
- 4047101442687
- Gross weight
- 631
- Height
- 40
- Length
- 230
- Net weight
- 631
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 0.552
- Volume unit
- DMQ
- Width
- 60
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus
- Connection technology signal
- M12

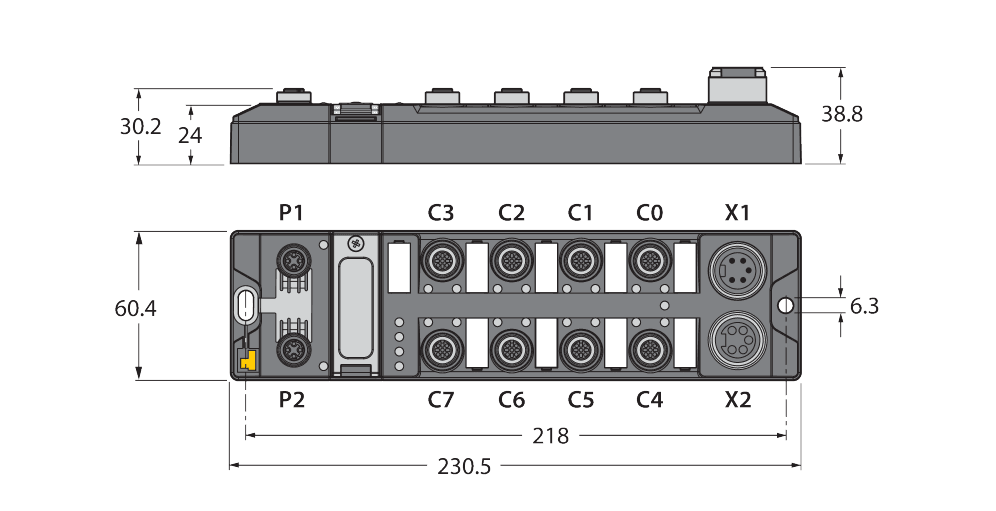

- Dimensions
- 230,5 mm x 60,4 mm x 38,8 mm
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic
- Fieldbus connection technology
- 2 x M12, 4-pin, D-coded
- Fieldbus transmission rate
- 10/100 Mbps
- Installation area
- zone 2, zone 22
- Number of channels
- 16
- Output voltage
- 24 VDC from potential group
- Voltage supply connection
- 7/8″, 5-pin
- Device type
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Protection class
- IP65, IP67, IP69K
- Signal type
- Digital output
